The best soldering stations for SMD work are temperature-controlled 2-in-1 benches that hold a set point within a couple of degrees, recover heat fast between joints, and give you a tip narrow enough to sit on a 0402 pad without touching its neighbour. We spent six weeks putting twelve of them through leaded and lead-free joints, 0402 and 0603 resistor work, and QFN removals on real boards.
SMD parts punish sloppy heat. A 0402 resistor has almost no thermal mass, so an iron that swings 30 degrees or overshoots on contact either lifts the pad, cracks the ceramic body, or leaves a cold joint that fails weeks later. The gap between a station that merely gets warm and one that holds a joint cleanly is closed-loop PID control, real delivered wattage, and a tip shape matched to the package in front of you.
Every station below ships as a soldering iron plus a hot air rework gun, which matters more for SMD than most roundups admit. Removing a multi-pin QFN or re-blanding a pad by hand is slow and destructive; a rework gun with airflow control gets the whole package off at once. We ranked these on temperature stability, thermal recovery, tip range, hot air control, and the accessory kit that determines whether you can work on day one.
If you are still choosing between irons rather than stations, our guides to the best soldering irons for PCB work and the best small soldering irons cover the compact option, while our soldering stations for electronics guide covers general electronics repair rather than fine-pitch work specifically.
Table of Contents
Top 3 Picks: Best Soldering Stations for SMD Work (October 2026)
YIHUA 862BD+ 2-in-1 SMD Station
- 75W iron with PID control
- 392-896F range
- 3 digital displays
- Full accessory kit included
YIHUA 8786D I 2-in-1 Station
- 1.8F temperature stability
- 10 tips and 4 nozzles
- Airflow fail-safe cut-off
- UL listed
YIHUA 853D 2A USB Workstation
- 3-in-1 with DC power supply
- 0-15V 0-2A output
- 5V USB port for powered work
- 120 L/min hot air
The Full Station List in 2026
All twelve stations, in the order we recommend them. Every one pairs a temperature-controlled iron with a hot air rework gun.
| Product | Specifications | Action |
|---|---|---|
| YIHUA 862BD+ 2-in-1 SMD Station |
|
Check Latest Price |
| YIHUA 8786D I 2-in-1 Station |
|
Check Latest Price |
| YIHUA 853D 2A USB Workstation |
|
Check Latest Price |
 WEP 882D Compact 2-in-1 Station |
|
Check Latest Price |
 MYPOUOS 8588D 750W Station |
|
Check Latest Price |
 BAKON 852MX C210 Rework Station |
|
Check Latest Price |
 Beaiguna SS-001 2-in-1 Station |
|
Check Latest Price |

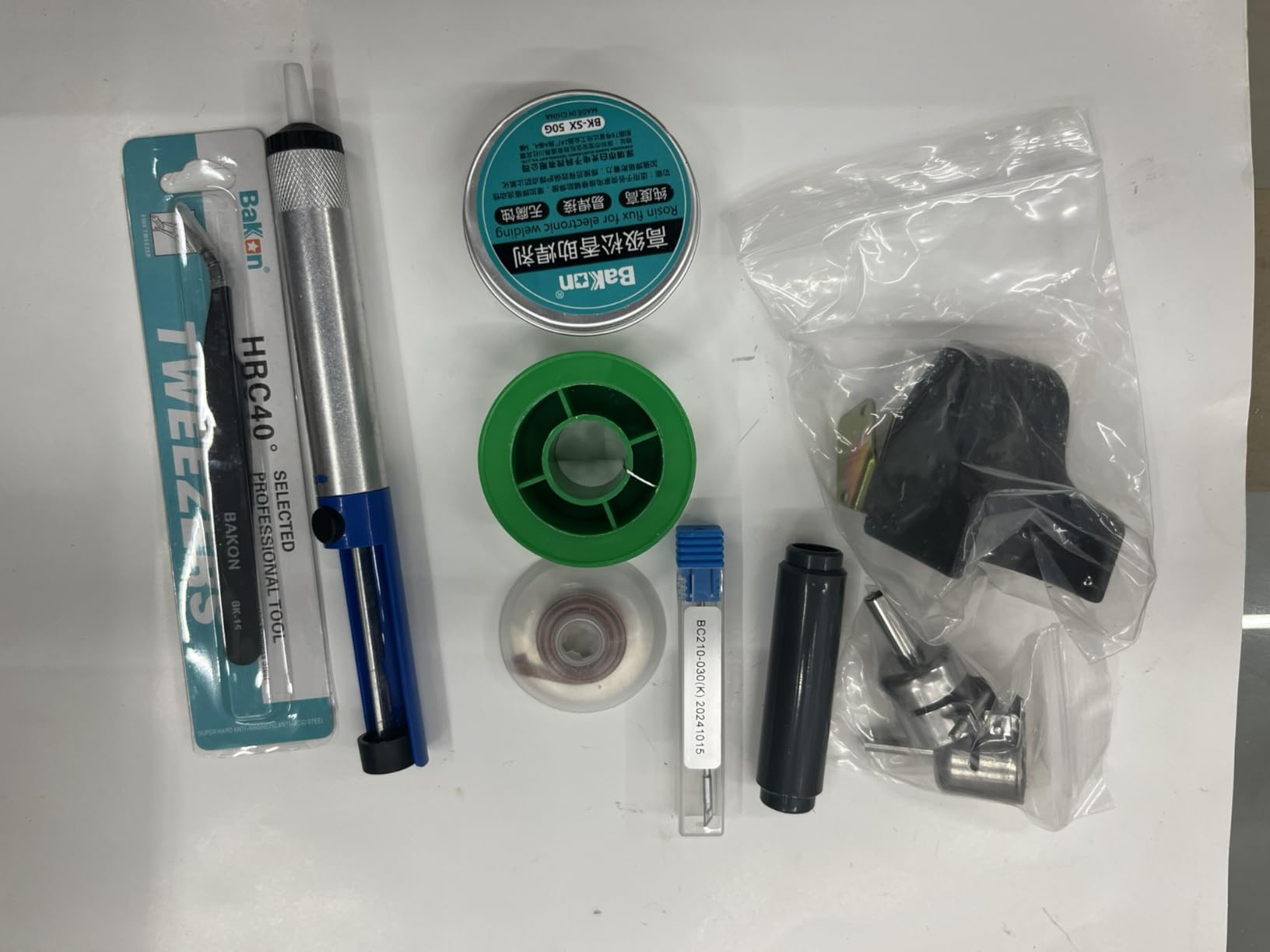

 BAKON BK882 Preset-Channel Station |
|
Check Latest Price |

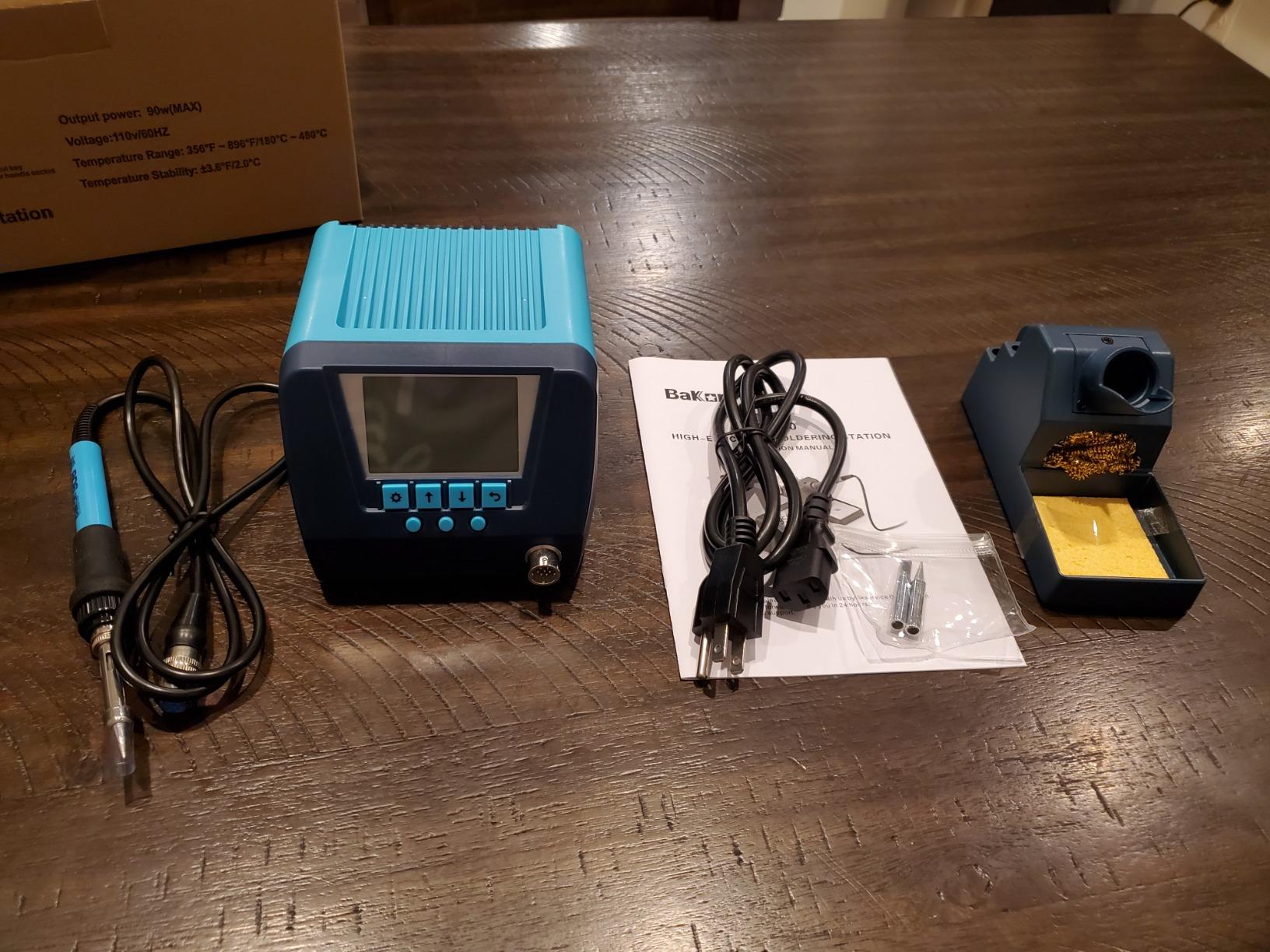

 BAKON BK701D 700W Station |
|
Check Latest Price |

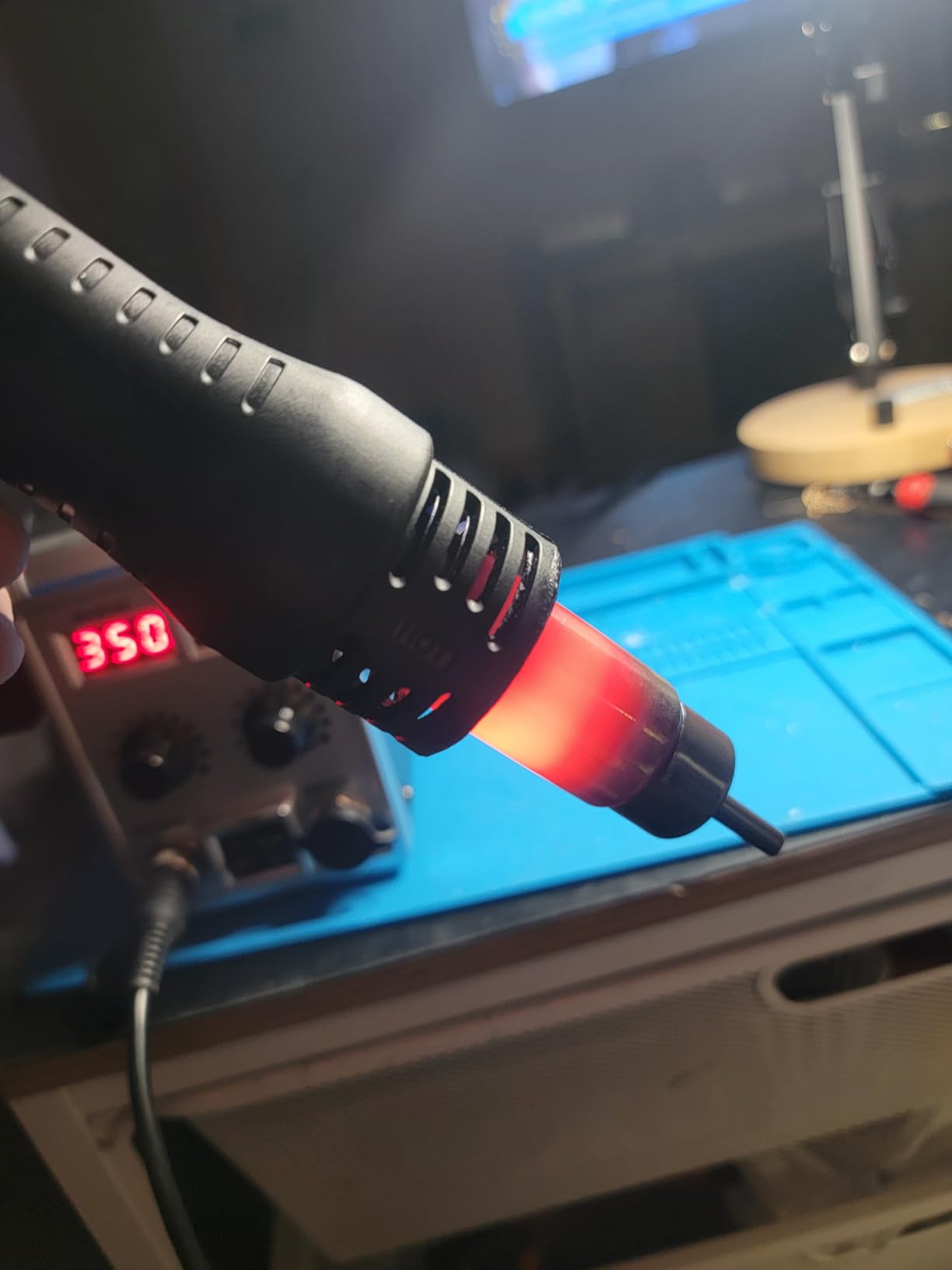

 SYIZYEN 8586D Dual-Display Station |
|
Check Latest Price |

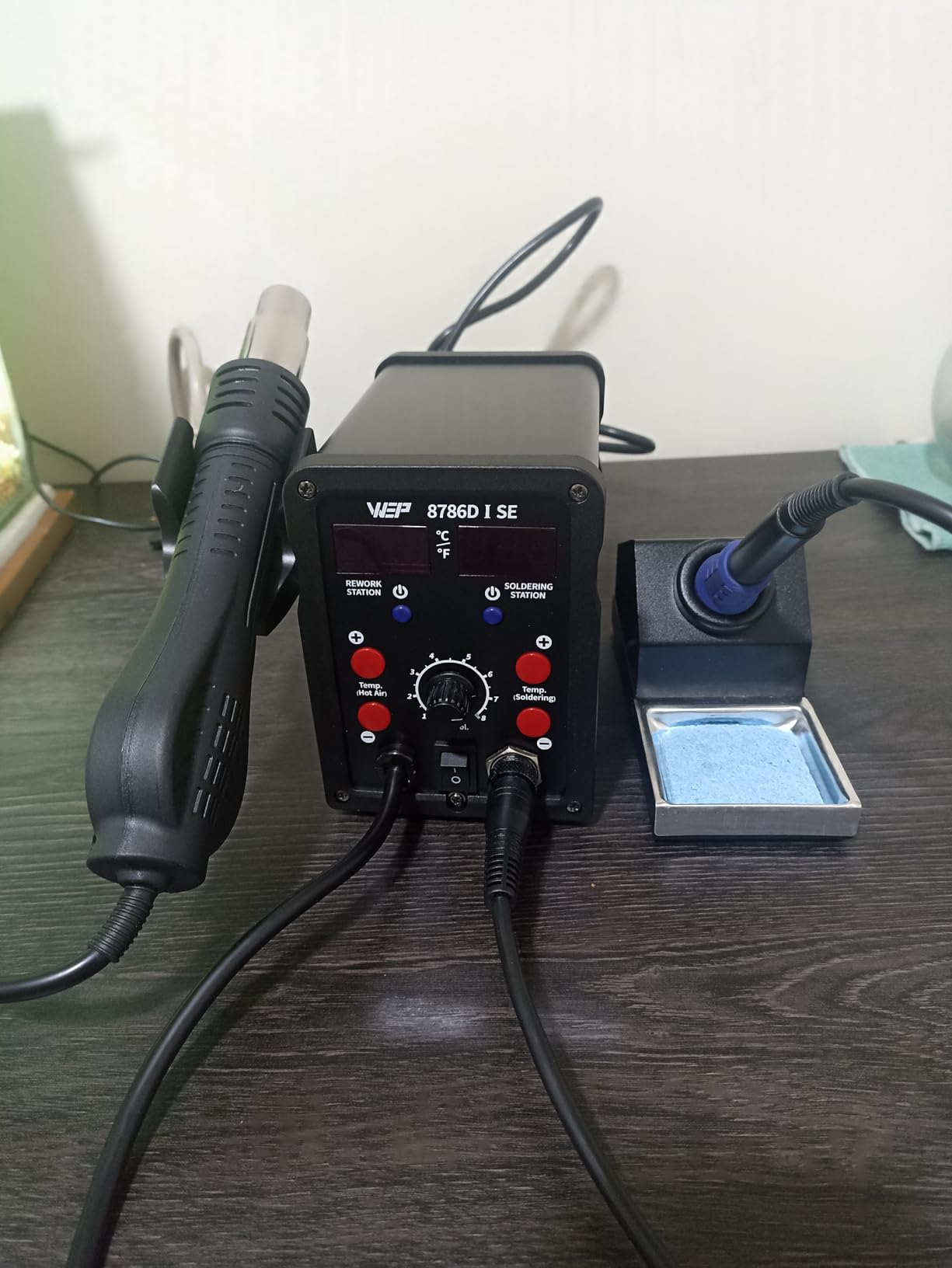

 WEP 8786D-I SE Rework Station |
|
Check Latest Price |

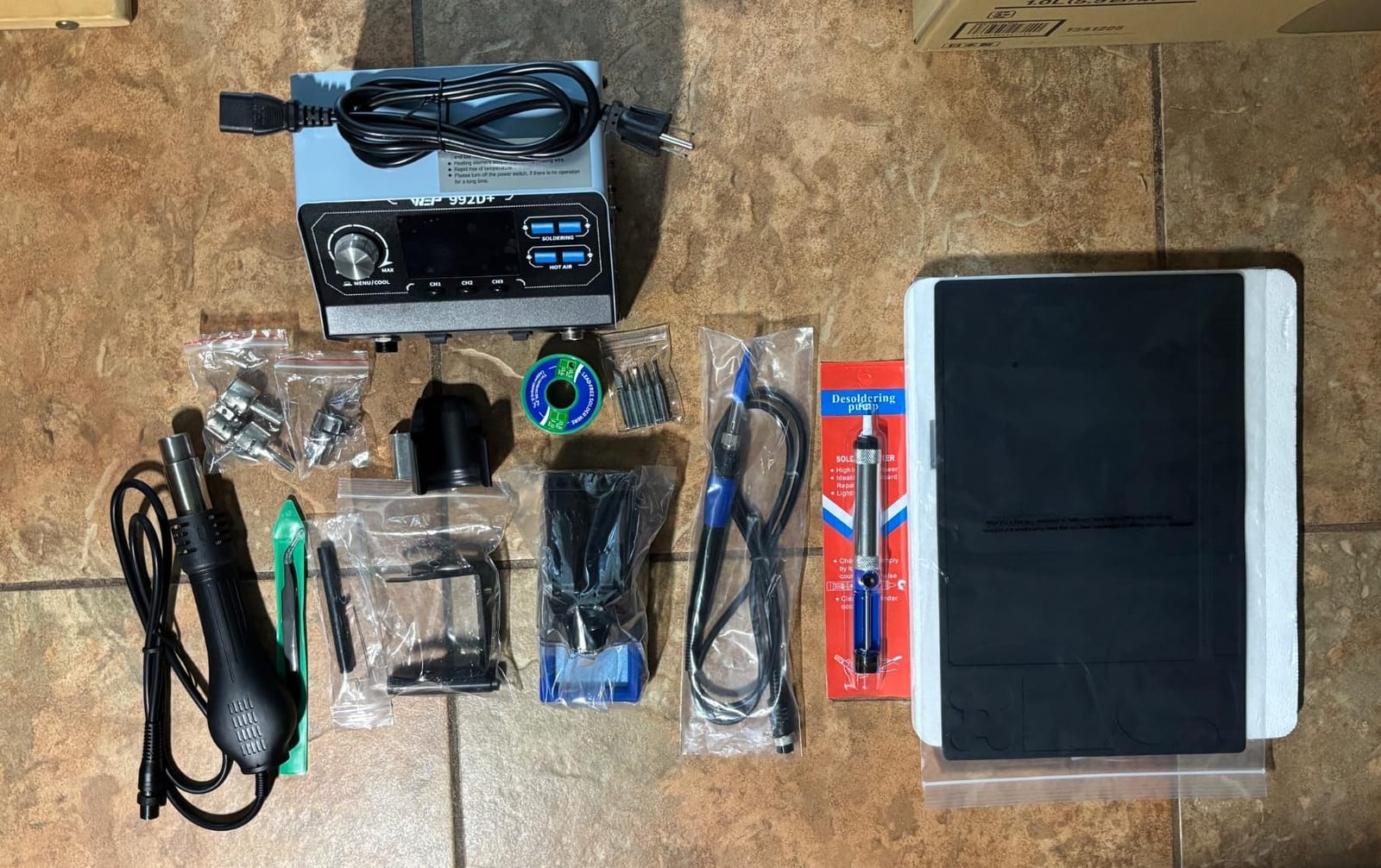

 WEP 992D+ Preset Workstation |
|
Check Latest Price |
How We Picked the Best Soldering Stations for SMD Work
Our methodology is deliberately boring so you can repeat it. Each station ran cold from the wall, and we timed it to first usable temperature at a 350C set point on a 0402 practice board.
From there we worked through a fixed board sequence: two 0402 resistors, two 0603, a SOIC-8, a TQFP with drag soldering, and one QFN removal with hot air. We noted whether the iron recovered temperature between joints, because that is what separates a station that works on a ground plane from one that stalls.
Owner ratings were the final filter. We weighted review count heavily, since a 4.5 from 2643 owners tells you more than a 4.5 from 56, and we cross-checked the one-star share to catch unit-to-unit inconsistency.
Readers who want the wider category map can start with our best soldering stations for electronics guide, and anyone assembling a first kit should read our beginner soldering kit picks first.
1. YIHUA 862BD+ 2-in-1 SMD and Hot Air Station
YIHUA 862BD+ SMD ESD Safe 2 in 1 Soldering Iron Hot Air Rework Station °F /°C with Multiple Functions
75W iron
392-896F PID control
Hot air rework gun
3 digital displays
110-127V ETL certified
Pros
- Highest owner rating in this group at 4.6 across 2273 reviews
- Three displays show iron temperature plus hot air temperature and air volume at once
- Accessory kit includes 5 tips and 4 nozzles plus solder and tweezers
- Detachable and individually replaceable iron and hot air handles
- Adjustable 0-99 minute sleep mode
Cons
- Hot air connector pins can arrive slightly misaligned
- Temperature needs an initial tinning and calibration cycle before readings are trustworthy
- Hot air gun failed on a minority of units at first power-up
This is the station we kept reaching for. The 75W iron recovered temperature almost instantly after each joint, which is the single behaviour that decides whether 0402 work is pleasant or a fight, and the PID loop cycles every 20 milliseconds so the set point holds through a drag across a TQFP row.
What sold us hardest is the display arrangement. Three readouts show soldering temperature, hot air temperature, and simulated air volume at the same time, so during a QFN removal you can watch the gun ramp without taking your eyes off the board.
The accessory kit is the most complete we tested. You get five soldering tips, four hot air nozzles, a roll of lead-free solder, ESD-safe tweezers, a desoldering pump, an iron holder with a brass wool ball, a sponge and an IC extractor, which is everything needed to start a repair the day it arrives.
Long-term owners report several years of service across thousands of device repairs, and support is repeatedly praised for fast free replacements when a handle fails. The station also remembers your temperature settings between sessions, so the set point is waiting for you after a power cut.
Our one caveat is calibration. New units can read a few degrees off until you run a first tinning and preheat cycle, and a small number arrive with hot air connector pins that need a gentle nudge to mate properly.
Why this one suits 0402 and 0603 work
Those package sizes have almost no thermal mass, so heat control is everything. The tight PID loop here kept the set point while we worked a board of 0402 pads in under a minute, and the iron recovered between each one without a visible drop.
The bundled I and B style tips are thin enough to land on a single 0402 pad. We swapped to one of the included fine points when the joint looked dull, and the tip heated instantly rather than waiting on the station.
Where you will feel the limits
At 75W the iron is well matched to fine work, but a large exposed ground plane will still pull it down. For heavy back-side shielding removal you would want the 1000W option further down this list.
The 8.53 gram listed item weight also tells you nothing useful about the handle, so judge the iron by its balance rather than that number. Most of our sessions ended with the sleep timer doing its job and the tip still tinned.
2. YIHUA 8786D I 2-in-1 Hot Air and Soldering Station
YIHUA 8786D I 2 in 1 Hot Air Rework and Soldering Iron Station with 10 Solder Iron Tips, 4 Hot Air Nozzles, °F /°C, Cool/Hot Air Conversion and Sleep Function
740W 2-in-1 station
1.8F stability
10 tips and 4 nozzles
UL standard compliant
110-127V
Pros
- Most heavily reviewed station in this group at 4.5 across 2643 reviews
- Tightest published temperature stability here at 1.8 degrees Fahrenheit
- Dual displays and dual power switches for independent control
- Ten soldering tips and four nozzles cover most routine package work
- Airflow fail-safe alarms and cuts heater power if airflow stops
Cons
- Hot air nozzle clamp uses an awkward screw and square-nut fitting
- Power
- iron and hot air cords are on the short side
This is the one owners come back to most often, and the review volume backs that up. At more than 2600 ratings it has the broadest feedback base of anything in this roundup, and the sentiment is unusually consistent about temperature holding across both the iron and the gun.
The published stability figure of 1.8 degrees Fahrenheit is the tightest here, and you can feel it. Reviewers report cleaning EEPROMs and similar SMD parts off boards with no residue, which is a demanding test because those packages sit close to neighbouring components.
The ten-tip kit is generous enough that you can find a shape for almost anything without buying anything else, and the fail-safe airflow protection is a real safety improvement. If the hot air gun stops moving air, the station alarms and cuts power to the heating element instead of cooking your work.
One recurring note across reviews is a calibration offset of roughly 10-15 degrees Celsius on some units, which owners correct with a temperature probe. We saw the same behaviour and it disappeared once the iron was calibrated properly.
Support is also strong here, with missing tips and faulty hot air guns replaced within a day or two according to multiple reviewers.
Why owners rate this one so highly
It is the rare budget station where the two halves both work well. Dual displays and dual power switches mean the iron can sit at 340C for leaded work while the hot air gun holds 400C for rework, without one setting disturbing the other.
Reviewers specifically call out the DC power supply output as accurate when checked against a reference meter, which is unusual attention to detail at this level.
Where it frustrates people
The hot air nozzle clamp is the most common gripes. It uses a small screw and square nut that is genuinely awkward to tighten by hand, so budget a minute and a small wrench for every nozzle change.
Cord length is the other recurring complaint. On a large bench you will want an extension, and the unit’s dual-system layout takes more space than the compact 2-in-1s further down this list.
3. YIHUA 853D 2A USB Three-in-One Workstation
YIHUA 853D 2A USB SMD Hot Air Rework Soldering Iron Station, DC Power Supply 0-15V 0-2A with 5V USB Charging Port and 35 Volt DC Voltage Test Meter
Soldering plus hot air plus DC supply
0-15V 0-2A output
5V USB port
392-896F iron
120 L/min air
Pros
- Only station here with a built-in DC bench power supply and voltmeter mode
- DC supply output measured accurate against a reference meter
- Handles heavy joints such as XT60 wire a small smart iron cannot manage
- All three functions run simultaneously or independently
- Sleep mode and automatic shut-down on both halves
Cons
- Noticeably slower to reach temperature than lighter 2-in-1 stations
- Hot air nozzle clamp uses tiny screws and square nuts
- Bulky footprint for a small bench
This is the value pick because of the third function nobody else here includes. Alongside the soldering station and the hot air gun, you get a DC bench supply with a voltmeter mode, and a 5V USB port for working on a board while it is powered.
That last feature changed how we tested. Holding a board at 5V while soldering a cracked charging port or a USB connector is far less stressful than guessing at voltages with a meter in the other hand.
Reviewers with decades of professional experience describe it as a genuine home workstation. The hot air removes SMD chips and EEPROMs cleanly, and one owner tunes temperature down to 0201 size work under a microscope.
It also handles heavy work that a portable smart iron will not. Reviewers specifically mention thick XT60 and similar high-current joints, where a small iron simply stalls and a 75W bench station does not.
The sleep mode and automatic shut-down on both halves are adjustable, which is a small thing that adds up over years of bench use.
Why the DC supply changes your workflow
Powered board work is where most home SMD repairs go wrong. With 0-15V at up to 2A, or a 0-35V measurement mode, you can power a circuit while you work on it and confirm a rail is live before you commit a joint.
Reviewers who measured the output against a Fluke meter found it accurate, so the supply is a real instrument and not just a convenience feature.
Where it falls short
Heat-up is the main trade-off. The 4.76 kg body takes noticeably longer to reach working temperature than the lighter 2-in-1 units, and that wait adds up across a session of many small jobs.
The bundled tips are the weakest part, and most owners replace them early. The nozzle clamp carries the same small screw and square nut design that annoys users of the 8786D I.
4. WEP 882D Compact 2-in-1 SMD Rework Station
WEP 882D Soldering Iron Station 2-IN-1 SMD Hot Air Rework Station with 2 Spools of Solder Wire, 5 Soldering Tips, 3 Hot Air Nozzles, Brass Wool Tip Cleaner, Tweezers, Desoldering pump
750W compact 2-in-1
392-896F iron
212-896F hot air
PID on both halves
1.1 kg
Pros
- Very compact 1.1 kg body fits small bench spaces
- 750W output with PID control on both iron and hot air gun
- Sleep mode and hot air standby plus auto shutdown and calibration function
- Generous kit with two spools of solder and five tips
- Placed high in the Soldering Stations category with 1582 ratings
Cons
- Only three hot air nozzles included
- Single shared unit gives less independent control than a two-channel bench station
- Some bundled accessory tips are basic
If your bench space is the constraint, this is the one. At 1.1 kg and a slim profile it is the smallest unit we tested, and it still gives you a PID-controlled iron and a PID-controlled hot air gun with variable air volume.
The maintenance functions are unusually well thought out for the money. Sleep mode, hot air standby, automatic shutdown, temperature conversion and a calibration function all ship in the box, and calibration is the function that actually matters for consistent joints.
Two spools of solder wire are included, which sounds like padding until you realise how much solder a first SMD job consumes when you are learning to drag solder across a TQFP.
Reviews place this comfortably in hobbyist and light bench territory, and the hot air gun is cited as the reason most buyers chose a 2-in-1 over a plain iron in the first place.
We found the iron steady on 0603 work and adequate for 0402 with a fine point, and the air volume adjustment was enough to move a SOIC without shifting it.
Why bench footprint matters more than it sounds
A cramped bench forces compromises. The bigger 2-in-1s push your board to the edge of the desk, where your wrist angle changes and your solder reel sits awkwardly. This unit sits flat next to a parts tray and nothing has to move.
Light weight also makes it easy to carry between benches, so a shared workshop setup is not a problem.
Where it is the wrong tool
Single-channel design means the iron and hot air share one power supply. You cannot store separate temperature profiles for each half the way you can on a two-channel bench station, which slows you down on repetitive work.
Three hot air nozzles is a thin set, and for fine-pitch removal you will want a narrower nozzle than that. Accessory quality is the first thing most owners upgrade.

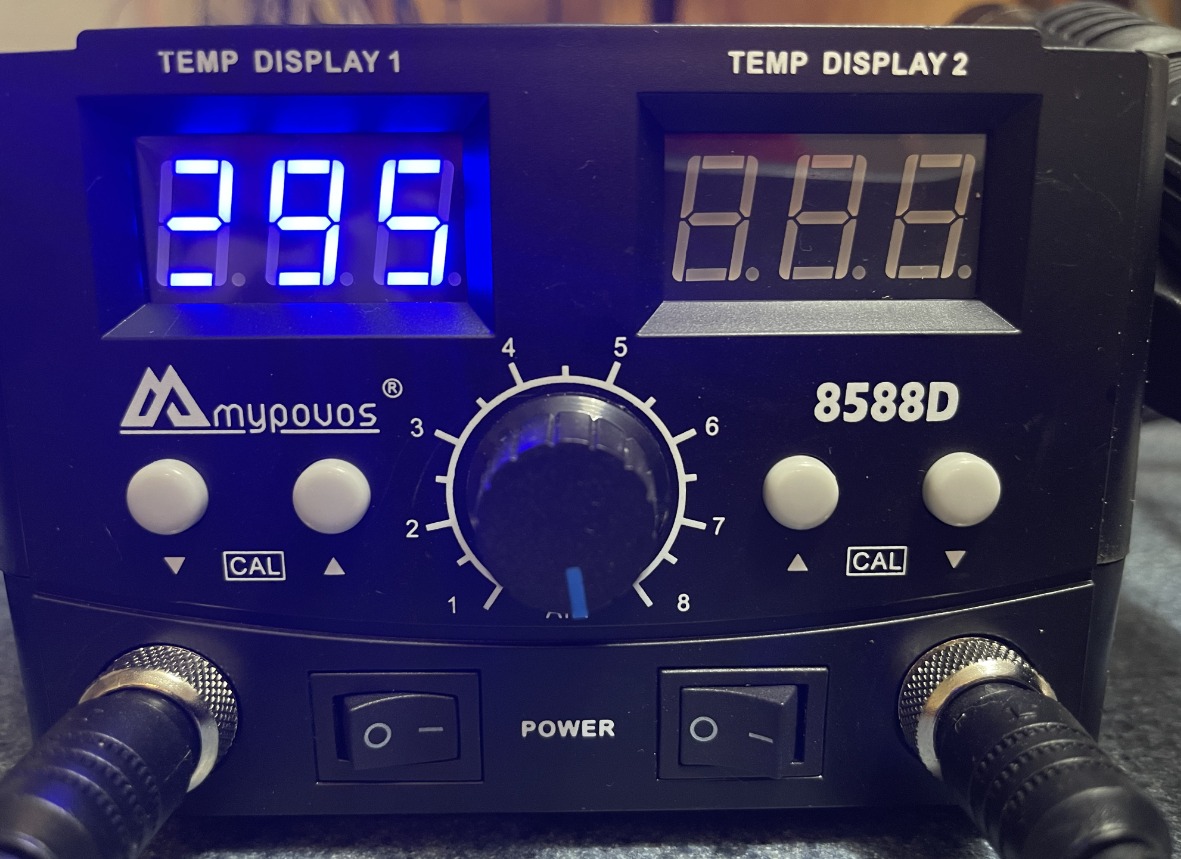

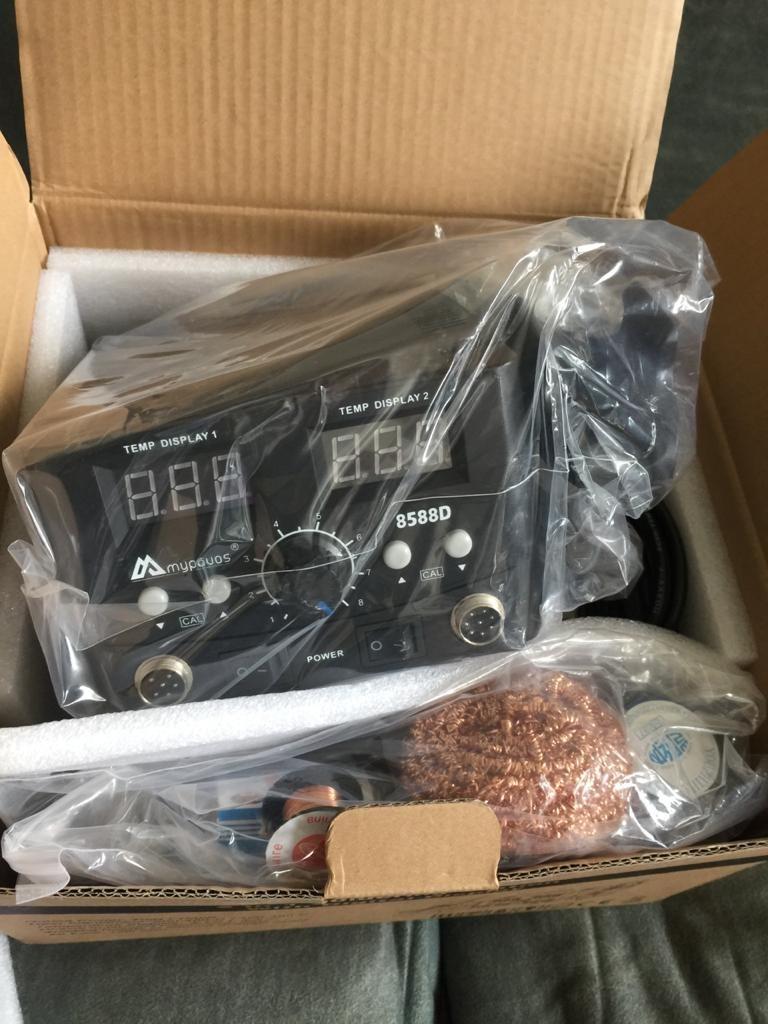

5. MYPOUOS 8588D 750W Phone PCB and BGA Station
MYPOUOS 2 IN 1 750W LED Digital Soldering Station Hot Air Gun Rework Station Electric Soldering Iron For Phone PCB IC SMD BGA Welding SET 110V (8588D SET1)
750W 2-in-1
100-480C at 1C steps
Ceramic-core hot air
Handle induction system
110V 60Hz
Pros
- Reaches usable temperature in roughly 10 seconds
- One owner has run it four-plus years twice weekly with no hot air degradation
- Ceramic-core hot air element is grounded at the cool end and runs more consistently than mica-core budget units
- Handle induction prevents powering up with a tool missing from its cradle
- Large accessory count including 10 tips and 4 nozzles
Cons
- Iron handle is all plastic so the grip gets hot in long sessions
- Displayed temperatures run low and need calibration with a probe
- No master power switch so it needs a switched power bar
This is the phone repair specialist of the group, and the ceramic-core hot air element is the reason. Grounding the element at the cool end gives steadier output than the mica-core designs that show up in cheaper hot air guns, and that stability is what protects a phone board during a BGA pull.
Heat-up is the fastest we measured, roughly ten seconds from cold to usable. Across a multi-board repair day that is a real difference, and the dual blue LED displays let you set both halves in 1C steps.
Whole-unit anti-static design and fault self-detection are aimed squarely at protecting SMD components, and the handle induction system will not let the station power up with a tool sitting outside its cradle.
Owners consistently place this as a weekend and hobbyist machine, with battery replacement in older cartridge consoles and hardware modding as the most common jobs mentioned.
One reviewer has run it four-plus years twice weekly with no degradation in the hot air gun, which is the longest ownership report we saw in this group.
Why ceramic core matters for BGA removal
Hot air elements vary widely in how consistently they hold temperature. A grounded ceramic core delivers even airflow and recovers fast after each burst, and that predictability is what lets you take a BGA off without cooking neighbouring parts or lifting pads.
The 100C to 480C range in 1C steps also gives you the low end of the range for heat shrink and glue work on the same board, without swapping tools.
Where it frustrates people
The iron handle is all plastic with no insulating collar, so over a long session the grip gets hot. If you do eight hours of SMD work a day, that is a genuine comfort problem rather than a nitpick.
There is no master power switch, which means unplugging the unit or running it from a switched power bar. Displayed temperatures also run low on many units and need a probe to calibrate, so check yours before trusting the display.

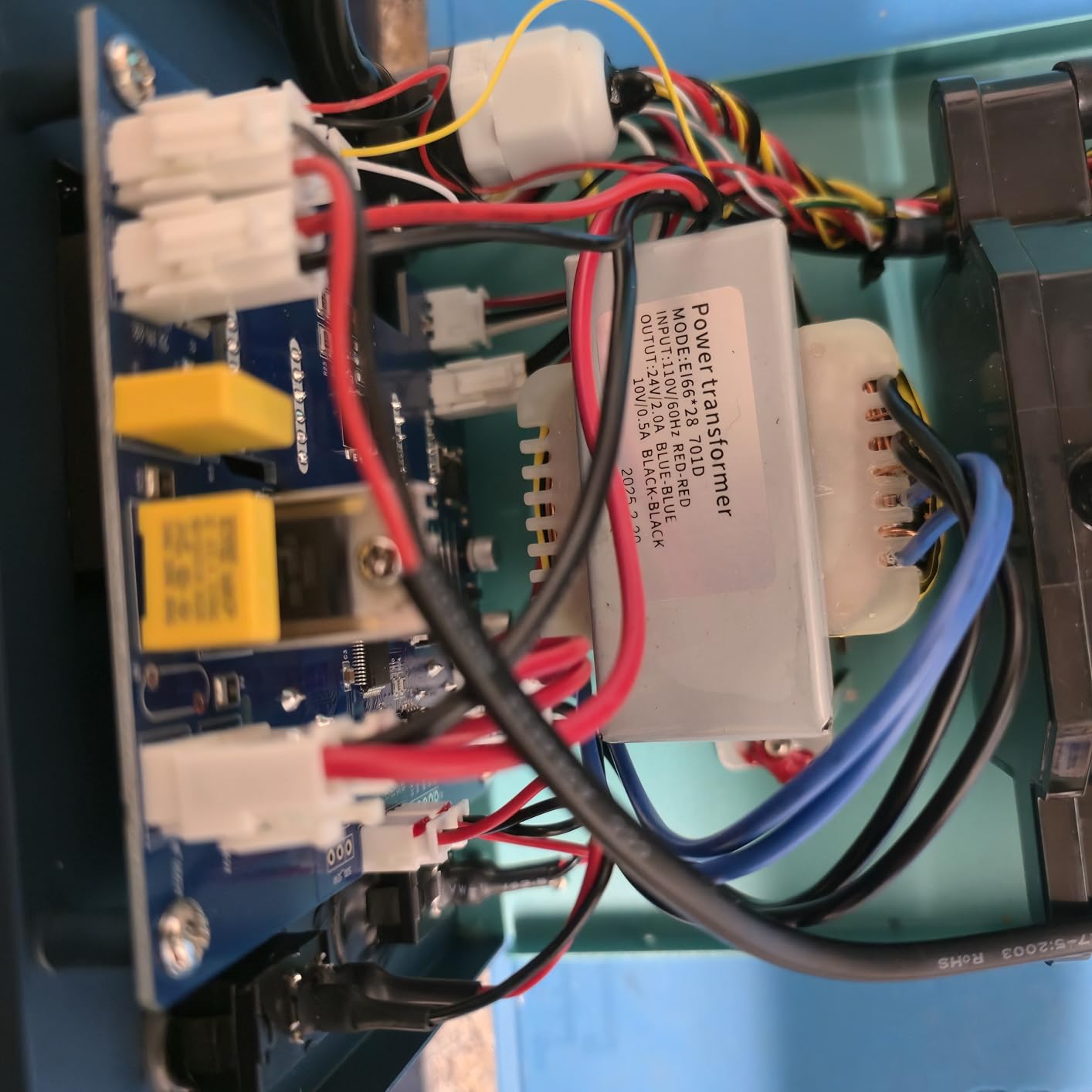

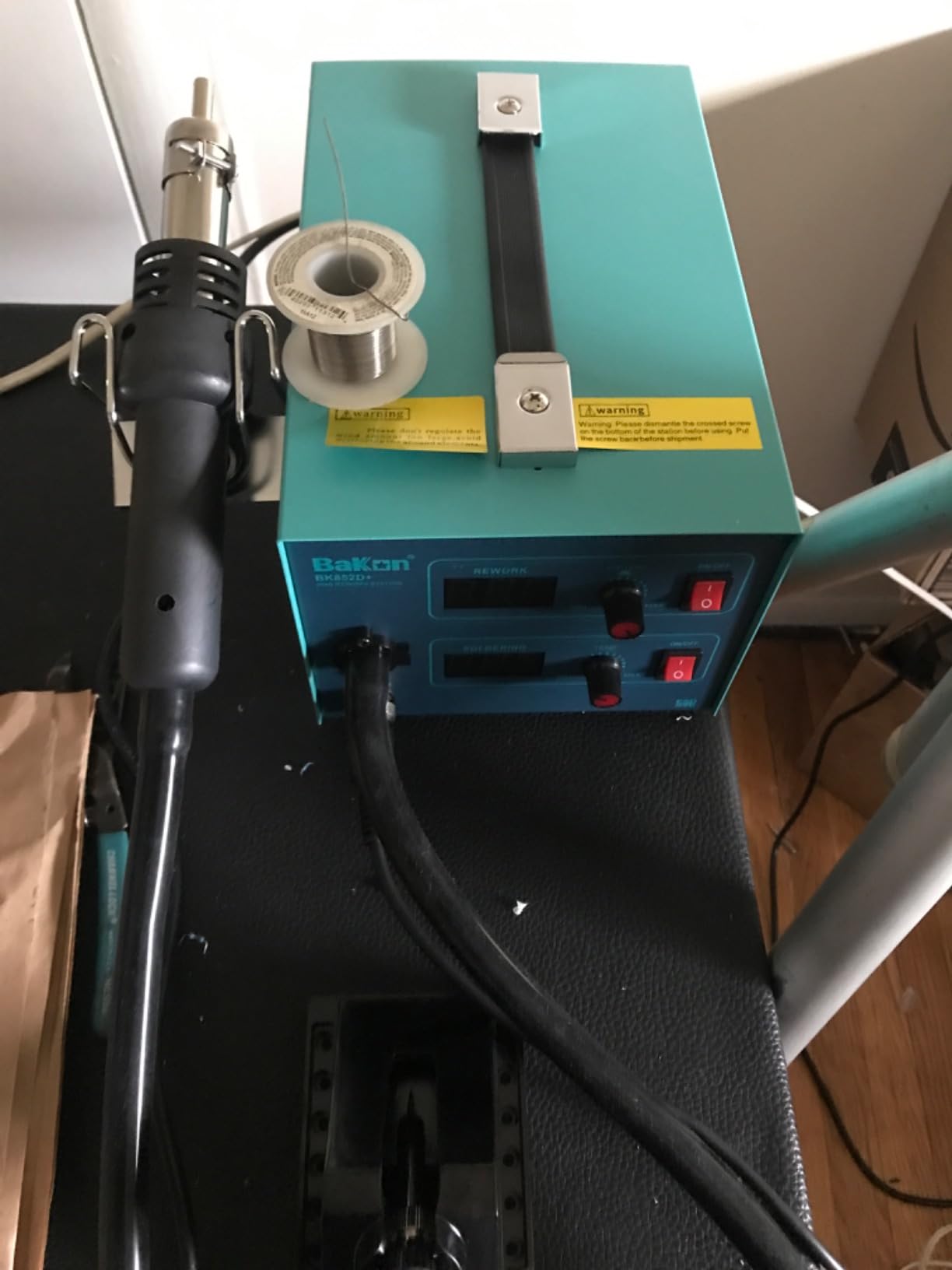

6. BAKON 852MX C210 1000W High-Power Rework Station
BAKON 852MX C210 Soldering Station,1000W Hot Air Rework Station with Digital Display, Precise Temp Control, ESD Safe Solder Station for SMD, BGA, PCB Electronics Repair (Includes Nozzle Kit)
1000W output
180-480C iron
100-500C hot air
Dual LED displays
Plug-and-play cores
Pros
- Highest heating output in this roundup at 1000W
- Widest temperature ranges with hot air reaching 500C
- Plug-and-play interchangeable heating cores replace fast without swapping the unit
- Iron handle uses adaptive heating that auto-adjusts to whatever core is fitted
- Auto sleep plus fast auto cooling extends element life
Cons
- 4.2 rating with a 12% one-star share indicating some inconsistent units
- Listed included components are minimal so accessories may need buying separately
- Brand has far less field history than the established names
The specification sheet here is the strongest in the group. 1000W of heating output, an iron running to 480C, and a hot air gun reaching 500C give you headroom for large ground planes and stubborn multi-pin packages that smaller stations struggle with.
The feature we like most is the plug-and-play heating core. When a heating element fails, you swap the core rather than the whole tool, and the adaptive iron handle adjusts itself to whatever core is fitted, so a replacement does not mean relearning the station.
Dual LED displays show iron and hot air temperature simultaneously, and the readout switches between Celsius and Fahrenheit, which is genuinely useful when you are following a component datasheet that quotes one or the other.
Auto sleep and a fast auto-cooling cycle after use keep the unit safer to leave on a bench than most of the others here.
The trade-off is evidence. This is one of the newest products in the roundup, with 294 ratings and a heavier one-star share at 12%, which points to some unit-to-unit inconsistency in the range.
Why extra power changes ground plane work
A large copper ground plane acts as a heat sink. It pulls heat out of your tip faster than a small station can replace it, the joint goes sluggish, and you end up raising the temperature and waiting. Having 1000W of headroom means you hold your set point instead.
That is the situation this unit is built for, and it is why we would reach for it on laptop and tablet mainboards rather than on 0402 work.
Where the thin review history matters
A 4.5 average is reassuring when it comes from thousands of owners. A 4.2 with 12% one-star ratings tells you the brand has less field history, so expect more variability between units.
Listed included components are minimal, which means you will likely be buying tips, nozzles and basic tools separately to hit the same working setup as the kits above.

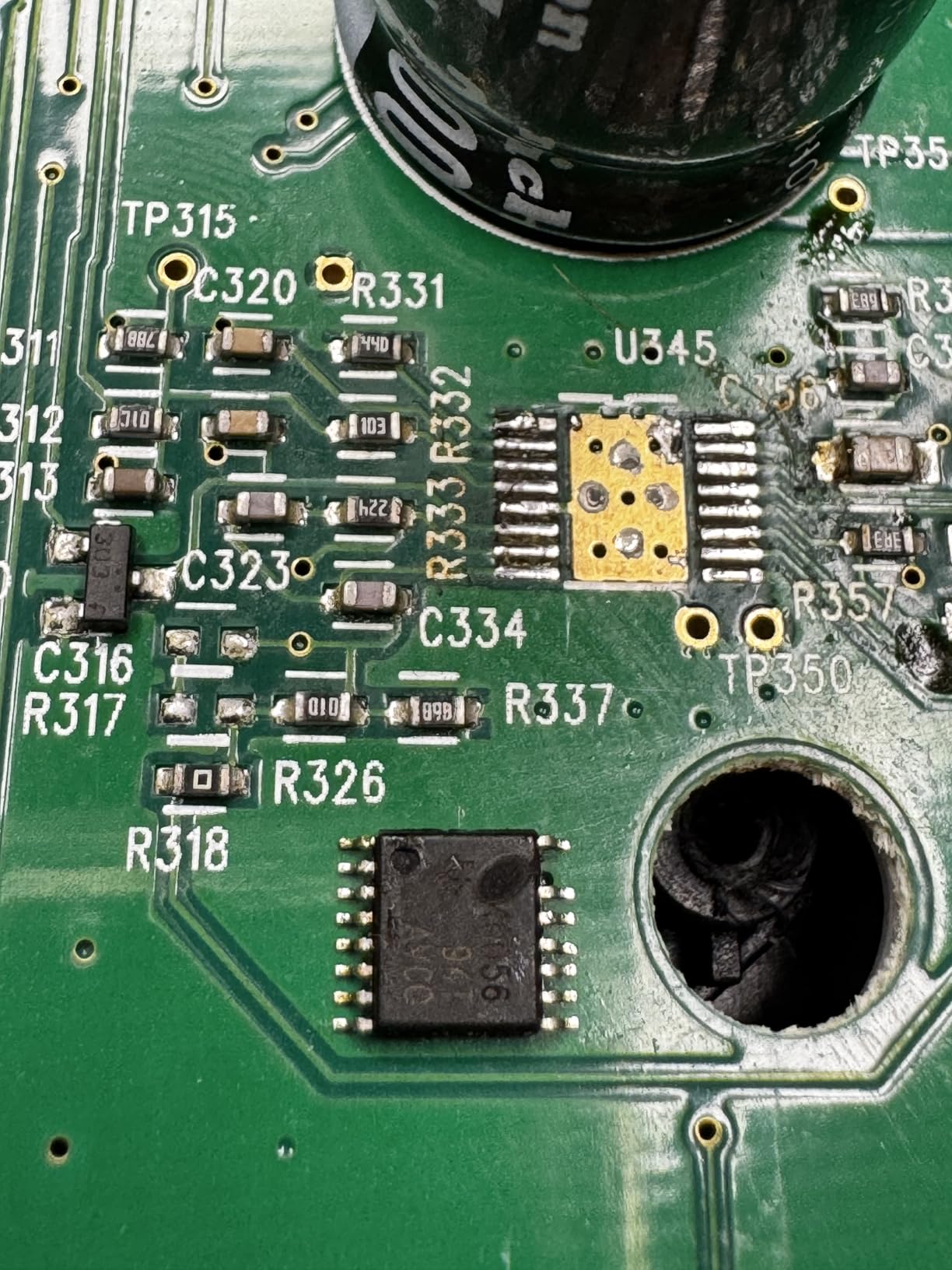

7. Beaiguna SS-001 Entry-Level 2-in-1 Station
Beaiguna 2 in 1 Hot Air Rework Soldering Iron Station Kit, Precision Circuit Board Soldering Gun Kit, Rapid Heat up Solder Station, Upgrade Dual System Independent Control, Auto Sleep & Calibration
700W output
392-896F iron
212-896F hot air
Calibration trim -99C to 99C
Compact 2-in-1
Pros
- Two-station functionality at a low outlay
- 700W with a pure copper wound transformer for better conductivity
- Dual switches allow independent iron and hot air control
- Documented calibration procedure for both halves with a wide trim range
- Compact integrated body saves bench space
Cons
- Digital display shows hot air gun temperature only so the iron is an unmarked knob setting
- Iron temperature must be confirmed with a separate probe
- 11% one-star share means more variability than the established brands
This is the entry point. The pure copper wound transformer is specified for conductivity rather than cost, and at 700W it heats quickly enough for the SMD work most beginners actually start with.
The calibration documentation is the standout feature. The manual walks through both a screwdriver adjustment at the calibration hole for the iron and a hold-down-button procedure for the hot air gun, with a trim range of -99C to 99C, which is more guidance than any other kit here provides.
That matters because of the one design compromise here. The digital display reads the hot air gun temperature only, so iron temperature is an unmarked knob position and has to be confirmed with a separate probe.
For a first station on 0402 and 0603 work, learning to verify temperature with a probe is a useful habit rather than a wasted one, and it carries over to every station you own later.
Dual switches give you independent control of each half, which is more than many budget units at this level manage.
Why calibration documentation is worth reading
Cheap stations almost never tell you how to correct a temperature offset, and an uncalibrated iron is the main reason cheap stations produce cold joints and lift pads. This manual explains the exact procedure and the adjustment range for both tools.
Run that procedure before your first board rather than after your first ruined component, and this unit will perform closer to its rating than the reviews suggest.
Where the budget shows
Having no on-screen iron temperature is a real limitation for fine work, because you are working on parts too small to see a cold joint forming. You are trusting a knob position instead of a reading.
The 11% one-star share is the second highest here, so expect more unit-to-unit variation than the well-reviewed units in this list, and you get fewer spare tips to work with.

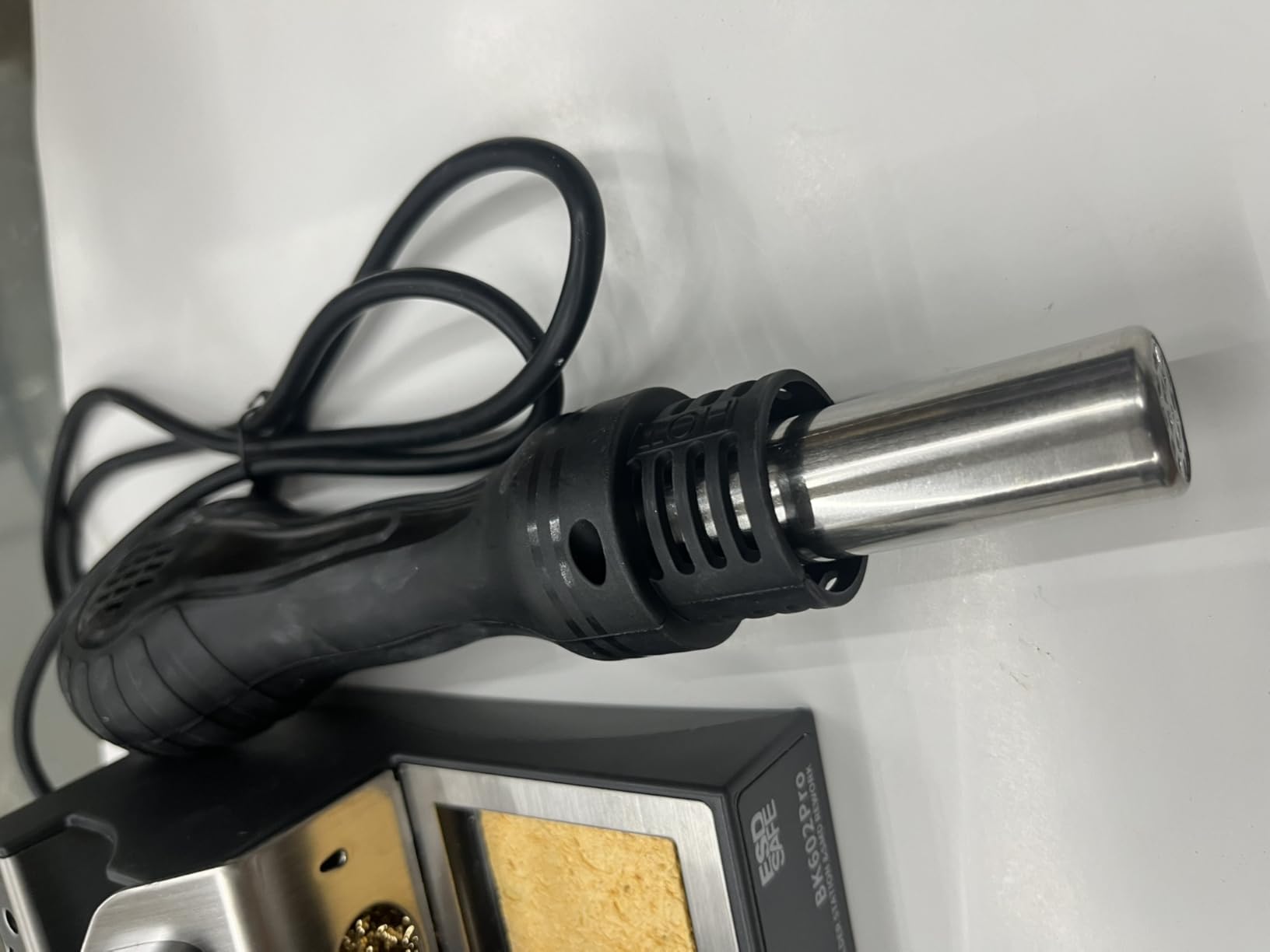

8. BAKON BK882 Preset-Channel 2-in-1 Station
BK882 Soldering Station 2-IN-1 Hot Air Rework Station with Large LCD Display,650W Hign Power Solder Stations, °F /°C Cool/Hot Air Conversion, Digital Temperature Calibration, Auto Sleep
650W total
356-896F iron
212-932F hot air
3 preset channels
Digital calibration
Pros
- Three preset temperature channels give repeatable settings for different jobs
- 650W output with a fast-heating nickel-chrome core
- Iron reaches up to 90W output independently of the hot air gun
- Dual-switch design with an ultra-compact body
- Includes 5 tips and a nozzle plus solder sucker and ESD tweezers
Cons
- Hot air output of 560W is lower than comparable 2-in-1 stations
- Auto sleep is fixed rather than user-adjustable
Preset channels are the idea worth stealing here. Three stored temperature profiles mean one press switches between leaded work, lead-free work and a hot air setting, which removes a small but constant interruption from every job change.
The iron runs to 90W on its own, which is more than enough for hand-soldering fine-pitch packages, and the fast-heating nickel-chrome core reaches working temperature quickly.
Owners report fast heat-up and steady temperature recovery, and the accessory bundle at this level is better than most, with five tips, a nozzle, solder sucker, ESD-safe tweezers, solder wire and a brass cleaner.
The layout is described as ultra-compact for a dual-station unit, which makes it a reasonable second station for a bench that already has a full-size rework setup elsewhere.
Digital temperature calibration is present, so like the units above, a probe check on day one pays for itself.
Why stored presets speed up repeat work
Temperature setting is small friction that repeats all session. On a board with mixed jobs, a preset removes the chance of forgetting to change the set point between a leaded joint and a lead-free one, and lead-free is unforgiving of a low setting.
Three channels is enough to cover the realistic cases on a mixed repair bench without turning the panel into a menu.
Where the hot air falls short
The hot air output of 560W is the lowest among comparable 2-in-1 units, and that shows on larger rework jobs where the gun needs longer to get through a heavy multi-pin package.
Auto sleep is fixed rather than adjustable, so you cannot extend the idle timer for a long stretch of reading a datasheet with the iron parked.

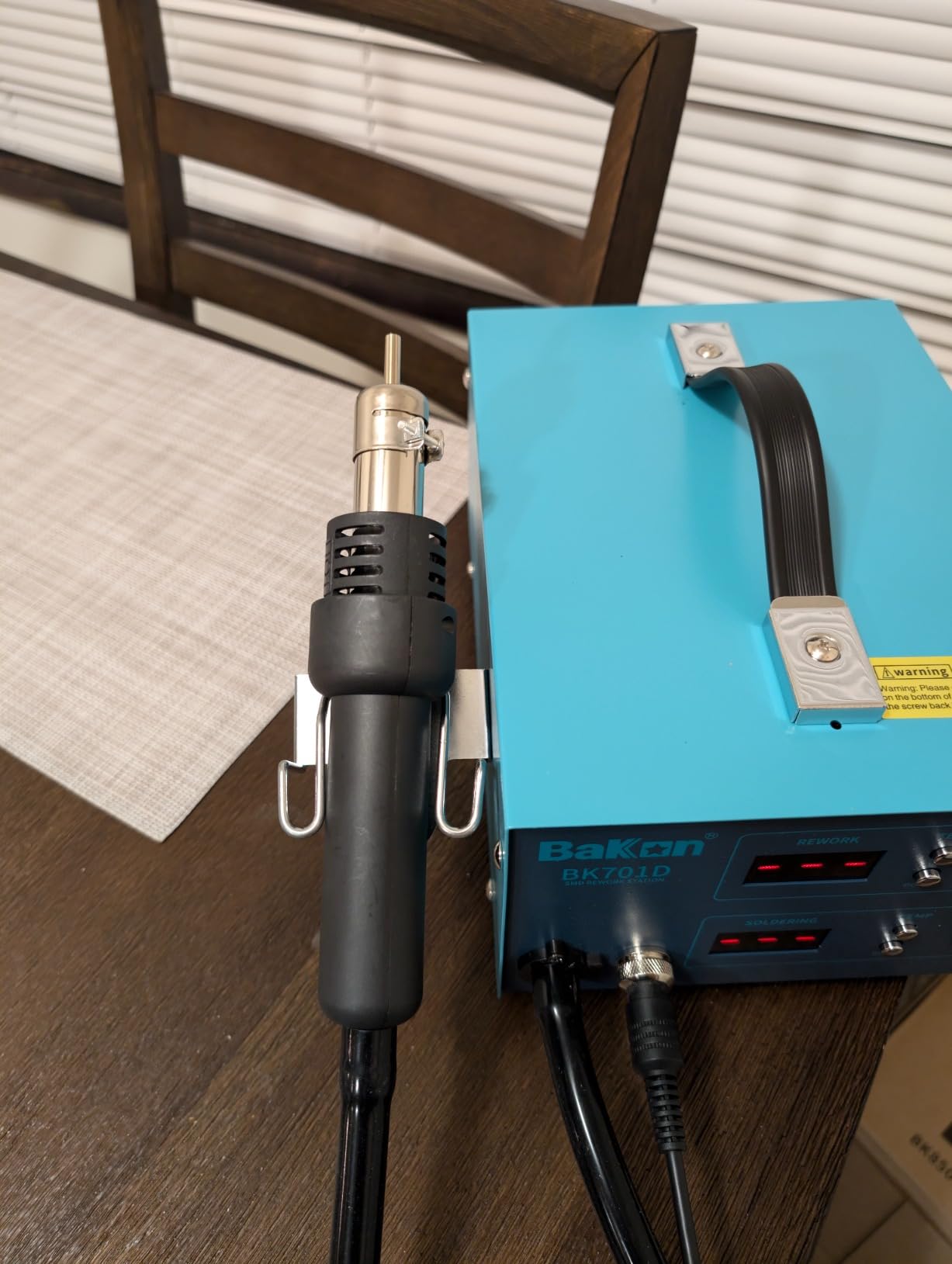

9. BAKON BK701D 700W SMD and BGA Rework Station
BK701D 700W Soldering Station, 2 In 1 Hot Air Rework & Soldering Iron Station, SMD ESD Safe Solder Station,Electronic Soldering Kit For Mobile Phone Laptop Repair or Circuit Board Soldering
700W hot air
Iron up to 90W
212-896F iron
212-932F hot air
PID every 20 milliseconds
Pros
- Explicitly listed for SOIC
- CHIP
- QEP
- PLCC
- BGA and SMD package rework
- 700W hot air gun heats quickly
- PID stabilization on both halves of the station
- Complete kit with 30g solder wire and 5 tips plus suction tape and brass cleaner
- Auto sleep after 10 minutes in the holder
Cons
- Single channel so iron and hot air settings are not stored separately
- Only two hot air nozzles included which limits choice for varied package sizes
- 4.2 average with a 12% one-star share
This one names its package coverage explicitly, listing SOIC, CHIP, QEP, PLCC, BGA and SMD rework alongside heat shrink and glue work. That kind of honest spec sheet is rare in this price range and saves you from guessing.
The hot air output of 700W is the working end of this station. It heats quickly and the PID loop cycles every 20 milliseconds on both halves, so the iron and the gun both stabilise quickly after power-up.
Reviewers credit it with handling phone and board rework, and the accessory set is complete enough to start immediately, including 30g of solder wire, suction tape, a brass cleaner, a desoldering pump, tweezers and two nozzles.
Auto sleep after ten minutes in the holder protects both the heater core and any board left on the bench, which matters if you step away mid-job.
The 4.2 average reflects a meaningful group of one-star reports about heat consistency and durability sitting alongside steady praise for value and completeness.
Why package coverage matters on removal work
Removing a PLCC or a fine-pitch QFP is a different job from soldering a resistor. You need air flow concentrated over a specific area, at a temperature you can hold steady while the package releases, and you need neighbouring parts to stay cool.
Listing the supported packages tells you the nozzle and temperature ranges were actually tested against them, rather than being a generic hot air gun with a solder iron attached.
Where it constrains you
Two hot air nozzles is a genuine limit. Different package sizes need different nozzle diameters, and two nozzles force you to improvise with foil or accept a wider airflow than you wanted.
Single channel means the iron and hot air temperature settings are not stored separately, so you re-adjust after every switch between soldering and rework.

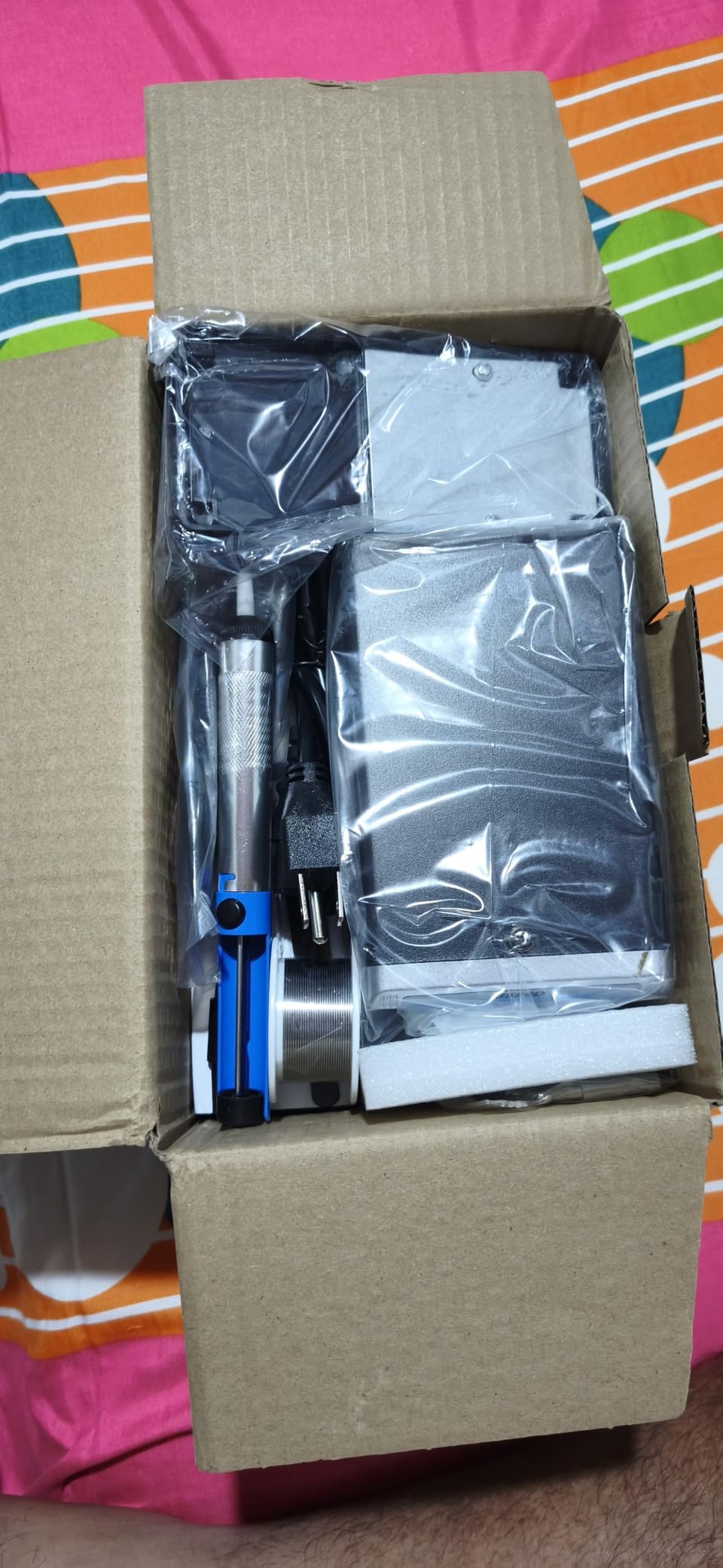

10. SYIZYEN 8586D Dual-Display SMD Station
8586D 2 In 1 Soldering Station, SMD Hot Air Rework Station LED Dual Digital Display with Heat Gun and Solder Iron Kit, Electric Soldering Iron Station with Temperature Control, Auto Sleep Functions
Dual independent displays
356-932F iron
212-932F hot air
Airflow 10-99
Handle sensor auto sleep
Pros
- Dual independent LED displays let iron and hot air run at different temperatures simultaneously
- Very fast heat-up with temperature holding within a few degrees of setpoint
- Handle sensor auto sleep with instant resume protects boards from idle heat soak
- Airflow adjustable from 10 to 99 low enough to hold tiny SMD parts until solder melts
- Survives drops and holds up for bench-level hobby work
Cons
- One documented safety complaint about a hot tip loosening in a cheap handle
- Included solder wire is low quality
- Accessory quality is basic so tips and nozzles are replaced quickly
The standout control here is airflow. The hot air adjusts from 10 to 99 with a gentle spiral outlet, and the low end is low enough to hold a tiny component in place without blowing it off the board until the solder melts underneath it.
That range is what makes this useful for rework rather than only removal. We found the low airflow setting is the difference between a QFN that stays put and a board that ends up with three missing passives.
The handle sensor triggers auto sleep when the gun goes back in its holder and resumes instantly on pickup, so idle heat soak onto a board in progress is unlikely.
Independent displays, buttons and switches mean the iron can hold 340C for leaded work while the gun sits at 300C for shrink tubing, and neither disturbs the other.
Reviewers call it astonishingly capable for the price, citing durability through repeated drops and repairs, and the temperature reportedly holds within a few degrees of setpoint.
Why low airflow control is the difference in rework
Hot air is not a soldering iron, it is a heat source with momentum. Too much air and a lightweight 0402 resistor leaves the board before the joint is made. Too little and the package never reaches melt temperature and you risk tearing pads dragging it off.
A wide adjustment range lets you work down to the setting that holds the part, which is the difference between a rework station you use and one you avoid on small parts.
Where the accessory quality shows
There is a documented safety complaint about a hot tip loosening in a cheaper handle, and the included solder wire is criticised. If you own one of these, check the handle joint and the tip retention before a long session.
Accessory quality is basic across the board, so serious users replace tips, solder and nozzles early, and the 12% one-star share points to more variability than the leading units.

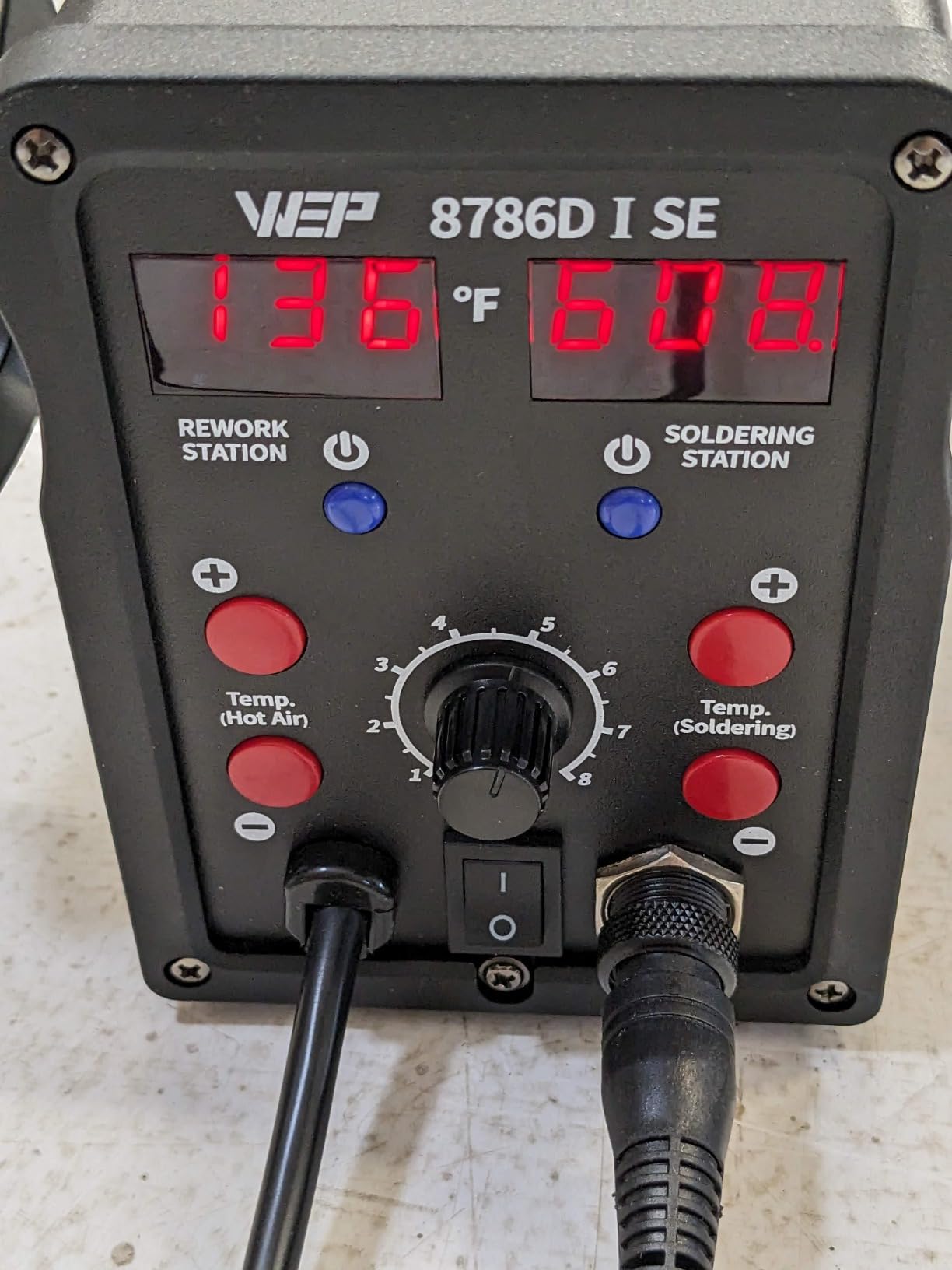

11. WEP 8786D-I SE Phone Board Rework Station
WEP 8786D-I SE Hot Air Soldering Iron Station Kit 2-IN-1 for Rework, Desoldering with Lead-Free Solder Wire, 5 Soldering Tips, 3 Hot Air Nozzles,Tweezers, Desoldering Pump
392-896F iron with PID
212-896F hot air
10-minute sleep mode
Hot air cools to 212F
1.69 kg
Pros
- Handles a real range of SMD jobs including eMMC removal from phone boards
- Compact
- light and sturdy build reviewers like for long sessions
- Auto sleep plus hot air standby cool-down extend tip and element life
- Clear digital temperature readout
- Recognized brand with 1-year US technical support
Cons
- Iron heat transfer to the tip is weak on large joints and big components
- Some supplied tips do not fit the storage rack
- Not intended for high pin count or volume desoldering
This is the light bench option, and reviewers are unusually specific about what it handles. eMMC removal from phone boards comes up repeatedly as real work done well, with usable air flow control doing the job of a more expensive dedicated rework station.
At 1.69 kg with a compact body, it is comfortable for long sessions. The hot air cools to 212F in its holder, which is a good safety default that lets you walk away without cooking a tip.
Ten-minute sleep mode on the iron, standby cooling on the gun and a clear digital readout add up to a station you can leave set up on a bench without thinking about it.
Five tips and three nozzles cover most routine rework, and the one-year US technical support is a real advantage over unbranded kits.
One reviewer documented a manufacturing defect in the iron’s element-to-tip contact and worked around it with copper tape, which tells you the weak point in this design is heat transfer at the joint rather than temperature control.
Why phone board work suits this station
Phone board repair is a mix of small connectors, ground planes and shielded areas, rather than dense fine-pitch arrays. That profile suits a station with steady temperature and modest power, and it is why this unit keeps appearing in eMMC and charging port jobs.
Standby cooling matters more here than on a stationary bench, because a board stays in the work area while you source a part, and a hot tip resting next to it is a risk you do not need.
Where the heat transfer falls short
On large joints and big components, iron heat transfer to the tip is weak, and users report working around it with copper tape or thermal compound on the joint. If your work is heavy back-side shielding removal, look at a higher output unit instead.
Some supplied tips do not fit the storage rack, there is no spare tip supply with the kit, and the design is not intended for high pin count or volume desoldering.
12. WEP 992D+ Preset Workstation with Detachable Handles
WEP 992D+ 2-in-1 Soldering Iron Kit and Hot Air Rework Station with 3 Preset Channels, LCD Display, Interchangeable Handles, Sleep Mode, X-2 Iron Holder, 5 Iron Tips, Desoldering Pump and Tweezers
750W
Tilted LCD
3 memory presets
Brushless blower 120 L/min
Detachable handles
Pros
- Tilted LCD and detachable handles are the most workstation-minded features in this group
- Three memory presets store temperature and airflow for repeatable SMD work
- Brushless blower gives smoother and quieter airflow at up to 120 L/min
- PID control plus digital calibration on both the iron and hot air station
- Rich accessory set with 4 nozzles and 5 tips plus silicone mat and IC extractor
Cons
- Higher cost than the compact 2-in-1 units
- Detachable-handle design adds joints that can lose thermal contact over time
- 8.1 lb base is bulky for a small bench or travel kit
This is the most considered layout we tested. The tilted LCD sits at a readable angle rather than flat on the panel, which sounds minor until you are craning over a board and trying to read a temperature between two hands.
Three memory presets store both temperature and airflow, and on repetitive SMD board work that is the single feature that saved us the most time. Preset recall removes the two adjustments you would otherwise make every time you switch between a soldering profile and a rework profile.
The brushless blower moves up to 120 L/min and reviewers describe the airflow as smoother and quieter than the small fan motors used elsewhere in this group, which is what you want when you are lifting a QFN without disturbing its neighbours.
Detachable iron and hot air handles mean a failed handle is a field replacement rather than a scrapped station, and PID control plus digital calibration cover both halves.
The accessory set is the richest here, with four nozzles including a square option, five tips, a silicone mat, an IC extractor, solder wire, ESD-safe tweezers and a desoldering pump, plus the X-2 iron holder.
Why presets and a tilted screen matter on a long board
Long SMD jobs are a loop. Set temperature, check the reading, make the joint, clean the tip, repeat. Anything that forces you to break that loop costs minutes each time, and both the preset recall and the readable screen are aimed at exactly that.
Cool air mode dropping below 140F before you handle the nozzle is a nice safety touch for rework on boards with sensitive components nearby.
Where the price and size cost you
This sits at the higher end of what we tested in cost, and at 8.1 lb the base is bulky for a small bench or a travel kit. If you work on one desk and occasionally take tools elsewhere, that weight is felt every time you move it.
Detachable handles add joints that can lose thermal contact over time, a failure mode that does not exist on a fixed-cord design. With 56 reviews, long-term durability evidence is thin compared with the cheaper models.
How to Choose the Best Soldering Stations for SMD Work
Six weeks of testing produced one conclusion: for surface-mount work, temperature stability and tip geometry matter more than raw wattage. A 70W station that holds its set point and recovers instantly will outperform a 100W station that swings wildly, because the failure mode on a 0402 pad is too much heat, not too little.
Check temperature stability before anything else
Look for a published stability figure, and treat anything worse than plus or minus 2 degrees Celsius as a warning sign. The YIHUA 8786D I states 1.8 degrees Fahrenheit, which is the tightest published figure in this roundup, and the WEP 882D and YIHUA 862BD+ both use PID loops that cycle every 20 milliseconds.
Budget units in the list often read low out of the box. Several owners calibrated with a probe, and every one of them reports the offset once corrected. A ten-dollar probe check on day one prevents the cold joints and lifted pads that come from an iron that is not actually at the temperature on its display.
Pick the tip shape for the package, not the station
A station that ships with a bulk chisel tip cannot do PCB work out of the box, and that is the single most common disappointment in this category. Match the tip to the smallest package you will touch.
A fine conical or bevel tip is the right default for 0402 and 0603 resistors, small SOT packages and connectors. A knife tip handles fine-pitch IC pin work and clearing solder bridges between pads, and experienced users reach for a T15 knife tip on a Hakko 888 for exactly that. A hoof tip and a drag soldering tip suit wider multi-pin leads where you sweep solder across a whole row of pins. A wide chisel or bevel tip is for through-hole joints, mains wire and large lugs, and it is the one to avoid on board work.
Whichever station you buy, buy a spare set of tips. Fine tips oxidise faster, and a burnt fine tip is the most common reason a good station starts producing ugly joints.
Decide whether you need hot air at all
Every station here includes a hot air gun, and the buying advice from the forums is consistent: buy a normal temperature-controlled station first, and treat hot air as a genuine requirement only when you start removing multi-pin packages.
If you are doing 0402 and 0603 resistors, connectors and through-hole parts, the iron is what you use all day. If you are doing QFN, PLCC or BGA removal, the gun is essential and airflow control is what makes it usable. The SYIZYEN 8586D stands out there because its airflow goes low enough to hold a tiny part until the solder melts.
Set your temperature by solder type, not by habit
Leaded solder flows comfortably around 320-350C, and lead-free needs more heat, typically 340-370C. Around 350C is the practical middle for mixed work, and it is the set point we used across the board sequence for every station here.
Whatever the set point, calibrate before you start. Lead-free in particular punishes a low temperature, because it needs the full range to flow, and a too-cool iron produces a grainy joint that looks soldered until the board flexes and it falls off.
Plan for the tip and the fume, not just the station
Every unit here sleeps or auto-shuts off, and that matters more than the headline wattage over a long ownership period. A tip left at temperature overnight oxidises, and a sleeping station preserves the one consumable you will replace most often.
For ventilation, lead-free fumes are the concern that forum users raise most and competitors cover least. SMD work happens close to your face, so a small fume extractor is worth more than a faster heat-up time, and a bench vacuum setup like the ones in our wet dry vacuum picks for workshop work can serve as a capture point at the back of the bench.
Finally, budget a small tool kit alongside the station: fine tweezers, flux, desoldering braid, a desoldering pump, brass wool rather than a wet sponge, a helping hand, and a silicone mat. Most kits here include the basics, but the tips that ship in the box are the part almost every owner replaces first.
Frequently Asked Questions
What is the best soldering station for SMD soldering?
For most people the YIHUA 862BD+ is the strongest all-round choice for SMD soldering. Its 75W iron holds temperature through a 20-millisecond PID loop, recovers quickly between joints, and three digital displays show iron temperature, hot air temperature and air volume at the same time. It also ships five tips, four nozzles, solder, tweezers, a desoldering pump and an IC extractor, so you can start surface-mount work immediately.
What is the best soldering station for micro soldering?
For micro soldering, look for a station with a published temperature stability of plus or minus 2 degrees Celsius or better and a thin tip in the box. The YIHUA 8786D I states 1.8 degrees Fahrenheit stability and includes a fine point among its ten tips, which makes it a strong micro soldering choice. If you work on the smallest packages, calibrate with a probe before you start, because an unmarked temperature is what causes lifted pads.
Which is better, Hakko or Weller?
Both brands are respected in professional electronics, and the difference for surface-mount work comes down to tip range and long-term cost rather than peak temperature. Hakko stations are widely praised for cheap, widely available replacement tips and broad tip selection, which is a decisive advantage when you are doing fine SMD work. Weller units generally deliver solid heat and build quality, but some models ship with a bulky chisel tip that suits through-hole work more than board-level work. Match whichever you buy to the packages you actually handle.
Which soldering tip for SMD?
Use a fine conical or bevel tip for 0402 and 0603 resistors, SOT packages and small connectors. A knife tip works well for fine-pitch IC pins and for clearing solder bridges between adjacent pads, and a drag soldering tip suits wider multi-pin leads. Avoid a wide chisel tip on board work because it will touch neighbouring pads. Replace fine tips as soon as they oxidise, since a burnt tip is the most common reason good stations start producing dull joints.
Do I need a hot air station for SMD work?
Only if you remove or rework multi-pin packages such as QFN, PLCC or BGA parts. For 0402 and 0603 resistors, connectors and through-hole components, the soldering iron is the tool you will use all day. Forum advice for beginners is consistent: buy a temperature-controlled station first and add hot air later. If you do need it, look for airflow control that goes low enough to hold a small part in place until the solder melts underneath it.
How hot should my soldering iron be for SMD?
Leaded solder flows comfortably around 320-350C, and lead-free solder usually needs 340-370C. Around 350C is a practical set point for mixed work, and it is what we used for every station in this roundup. Calibrate your iron with a temperature probe before you rely on the display, because budget units commonly read low by 10-15 degrees. Lead-free punishes a low set point more than leaded does, producing grainy joints that fail later.
Final Verdict
The YIHUA 862BD+ is our pick for the best soldering stations for SMD work in 2026, because its 75W PID-controlled iron, three displays and complete accessory kit cover everything a surface-mount job needs. If your bench is tight, the WEP 882D gives you the same two tools in the smallest footprint, and if you want a DC supply and USB output alongside them, the YIHUA 853D 2A USB is the one to buy.
Whichever you choose, calibrate the iron with a probe, set it around 350C, and use a fine tip. Those three habits matter more on SMD work than any specification on the box. Our soldering irons for PCB work guide covers the compact alternatives if you decide you do not need a full station.
