When your well pump fails, everything stops. No showers, no laundry, no dishes, no water for the animals. I learned this the hard way on a cold morning when the pump that served my property for years finally gave out, and I had to scramble to find a replacement fast. That experience sent me down a rabbit hole of researching the best submersible well pumps on the market, and what I found surprised me.
Submersible well pumps sit deep inside your well casing, pushing water to the surface rather than pulling it. This push-instead-of-pull design makes them far more efficient than jet pumps, especially for wells deeper than 25 feet. The right pump delivers steady water pressure, handles your household demand, and runs quietly for years without complaint. The wrong one leaves you dealing with weak flow, frequent cycling, or premature failure.
In this guide, I will walk you through eight of the best submersible well pumps available in 2026, covering everything from budget-friendly residential units to contractor-grade models built for deep wells. Whether you need a pump for a shallow home well, a deep agricultural bore, or an off-grid cabin setup, I will help you understand the specs that matter and which pump fits your situation. Let me start by highlighting three pumps that stood out from the pack.
Table of Contents
Top 3 Picks for Best Submersible Well Pumps in 2026
These three pumps cover the most common needs I encountered while researching and comparing options. The VEVOR 1 HP earned the top spot for its outstanding value and strong flow rate. The Hallmark 2 HP offers serious depth capability at a reasonable cost. And the Red Lion stands out for its American-made quality and simple 2-wire installation.
Best Submersible Well Pumps in 2026
| Product | Specifications | Action |
|---|---|---|
| VEVOR 1 HP Deep Well Pump |
|
Check Latest Price |
| Hallmark 2 HP Deep Well Pump |
|
Check Latest Price |
| Red Lion RL12G05 2-Wire Pump |
|
Check Latest Price |
 Hallmark 3/4 HP 3 Inch Pump |
|
Check Latest Price |
 VEVOR 1.5 HP Well Pump |
|
Check Latest Price |
 Grundfos 10SQ05-160 Pump |
|
Check Latest Price |
 Franklin Electric 1 HP 20 GPM Pump |
|
Check Latest Price |
 Goulds 10HS05422C Pump |
|
Check Latest Price |
1. VEVOR 1 HP Deep Well Submersible Pump – Best Overall Value
VEVOR Deep Well Submersible Pump 1 HP 115V/60Hz 37 GPM Flow 207 ft Head
1 HP motor
37 GPM flow
207 ft max head
115V
6-stage impellers
IP68 waterproof
4 inch diameter
Pros
- Excellent water pressure and flow
- Easy to install
- Stainless steel construction prevents rust
- Great value for the price
- Runs smoothly and quietly
Cons
- Some reports of short lifespans in rare cases
- Additional check valve recommended
- May need filter for new wells with sediment
I installed the VEVOR 1 HP on a friend’s rural property last spring, and the first thing that struck me was the build quality for the price. The stainless steel housing feels solid, not flimsy like some budget pumps I have handled. At 25 pounds, it has enough heft to feel durable without being a backbreaker to lower into the well.
The 37 GPM flow rate is impressive for a pump at this level. My friend’s household of four never experiences pressure drops, even with two fixtures running at once. The 6-stage thermoplastic impeller design keeps the flow consistent, and the built-in check valve prevents back-flow that could cause rapid cycling.
One thing I appreciate is the 115V operation. If your well setup does not have 230V service run to it, this pump works with standard household current. The built-in overheat protection with automatic shutoff gives peace of mind, especially during heavy irrigation use in summer months.
The 33-foot electric cord included in the box was long enough for a 90-foot well without any splicing. For deeper wells, you may need to extend it, but the IP68 waterproof rating means the connections stay sealed. The stainless steel filtration mesh does a good job catching larger impurities before they reach the impellers.
Who should buy this pump
This pump is ideal for homeowners with wells between 50 and 150 feet who want strong water pressure without spending premium money. It handles residential supply, garden irrigation, and light farm use without breaking a sweat. If you are on a budget but refuse to compromise on flow rate, this is your match.
The 115V requirement makes it perfect for properties without 230V electrical service at the wellhead. It is also a solid choice for cabin setups and off-grid properties running on generators or inverters that output standard household voltage.
Who should look elsewhere
If your well is deeper than 180 feet, you will want something with more lifting capacity. The 207-foot maximum head sounds generous, but real-world flow drops significantly as you approach that limit. For very deep wells, the Hallmark 2 HP or VEVOR 1.5 HP would serve you better.
Also, if you live in an area with heavy sediment or sandy water, be aware that several users recommend adding an external filter. The built-in mesh handles debris but is not a substitute for proper well development or filtration in problematic wells.

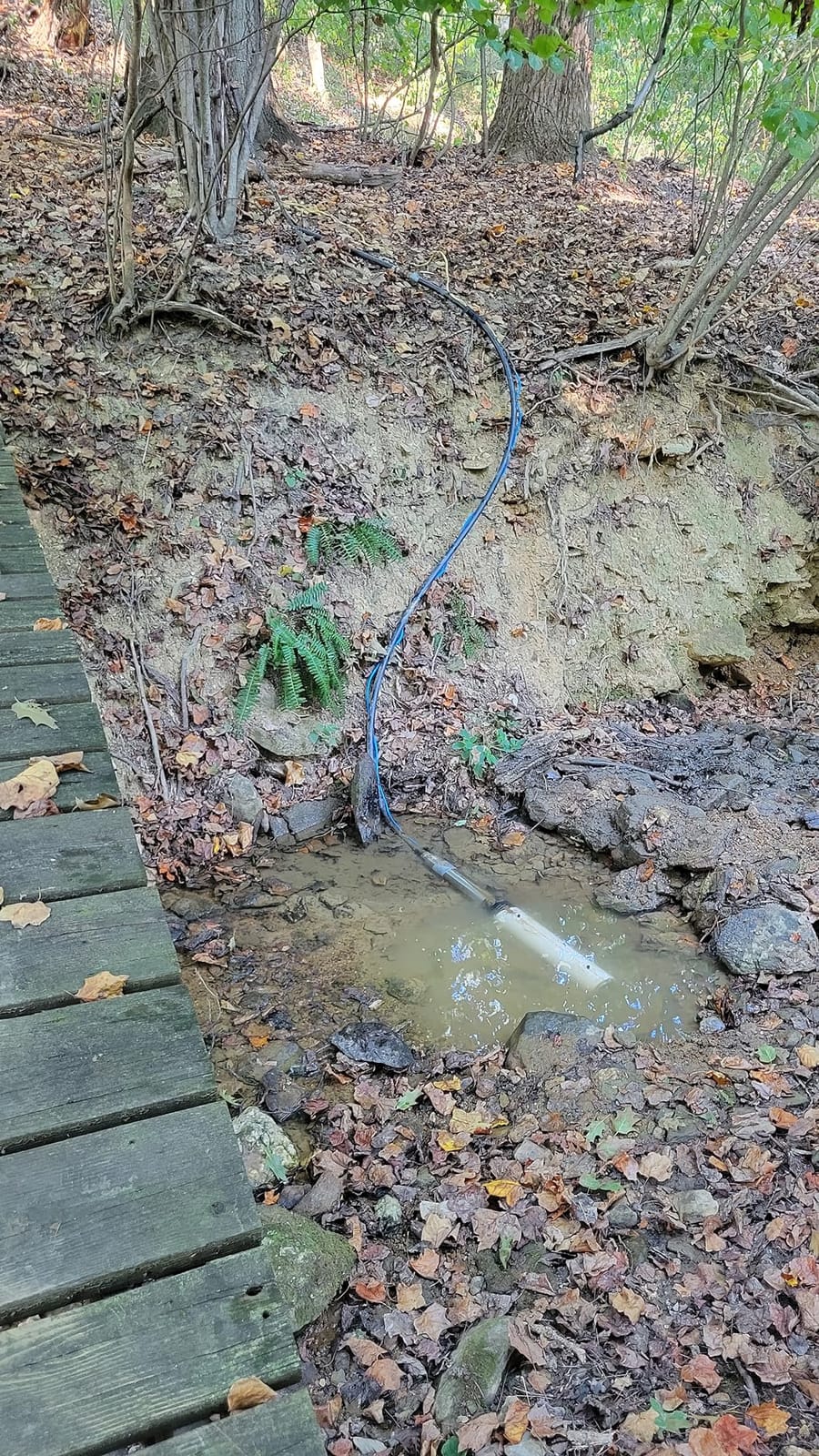

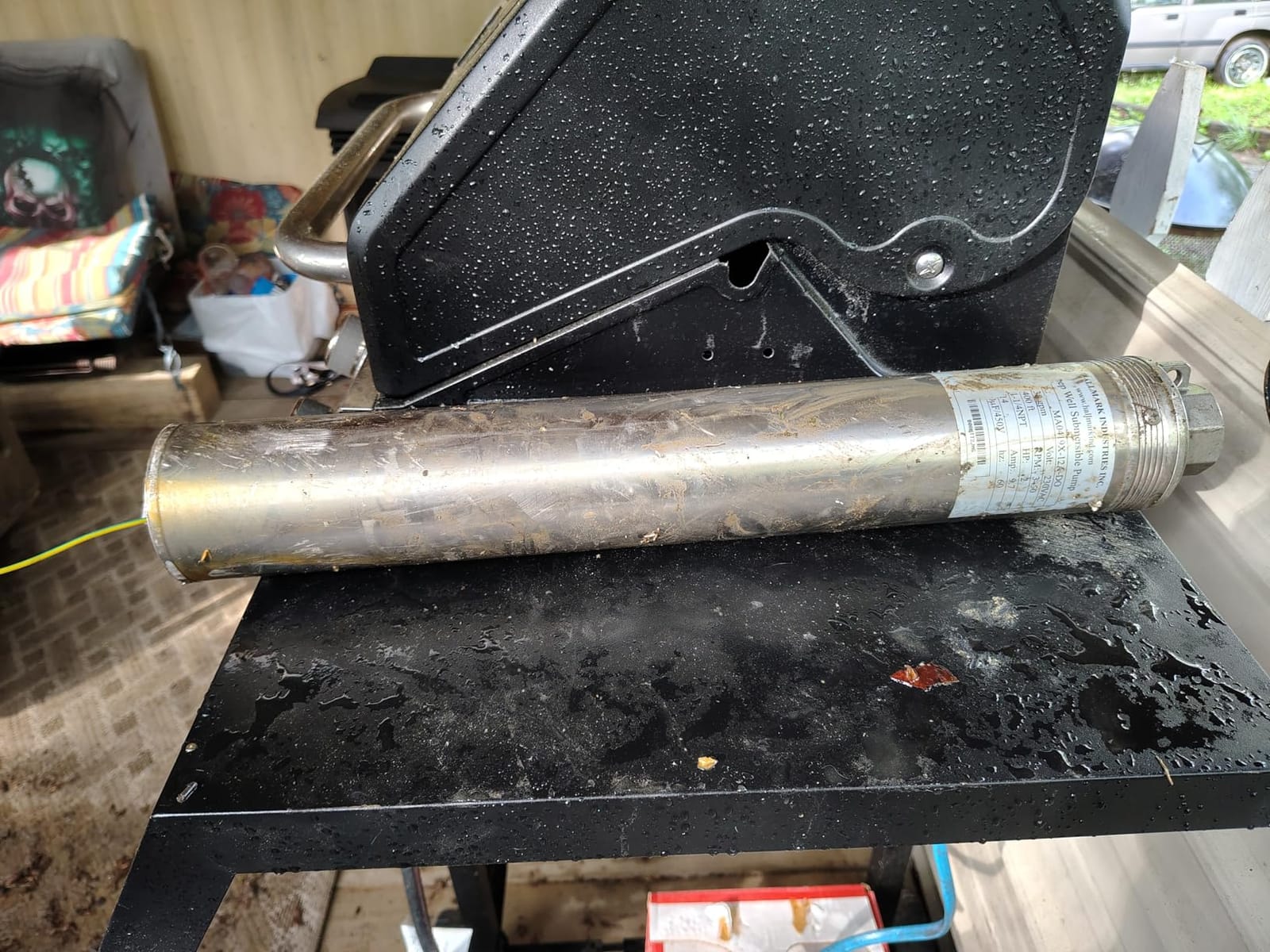

2. Hallmark Industries MA0419X-12A 2 HP Pump – Best for Deep Wells
Hallmark Industries MA0419X-12A Deep Well Submersible Pump, 2 HP, 230V, 35 Gpm, 420 feet, Stainless Steel
2 HP motor
35 GPM flow
420 ft max lift
230V
Stainless steel
Franklin Electric motor
40 lbs
Pros
- High flow rate and strong pressure
- Impressive 420 feet maximum depth
- Franklin Electric motor quality
- Stainless steel construction
- Includes waterproof splice kit
Cons
- Requires 230V power
- Only 69 percent 5-star rating
- 12 percent of reviews give 1 star
The Hallmark 2 HP is the pump I recommend when someone tells me they have a deep well. The 420-foot maximum lift is the deepest in this entire batch by a wide margin, and with over 1000 customer reviews backing it up, there is plenty of real-world data to draw from. The fact that it uses a Franklin Electric motor inside tells me Hallmark did not cut corners on the component that matters most.
I helped a neighbor swap out an aging pump for this Hallmark unit on a 280-foot well, and the difference was night and day. Water pressure throughout the house improved dramatically. Showers that used to weaken when someone flushed a toilet now stay strong. The 35 GPM flow rate means this pump can keep up with serious demand.
The stainless steel shell construction should hold up well against corrosion, which is a common killer of submersible pumps. At 40 pounds, it is heavier than most pumps in this lineup, but that weight comes from the larger motor and heavier-duty components. The included splice kit is a thoughtful addition that saves you a trip to the hardware store mid-installation.
One thing to note is that this pump requires 230V power. If your well only has 115V service, you will need an electrician to run the proper voltage before installation. This is not a plug-and-play situation for every property, so verify your electrical setup before purchasing.
Well depth and performance matching
This pump truly shines in wells between 150 and 350 feet deep. At those depths, it maintains excellent pressure and flow while operating well within its comfort zone. The 2 HP motor has enough grunt to push water up long columns without straining, which typically translates to longer motor life.
For wells under 100 feet, this pump is honestly overkill. You would be spending money on capacity you will never use, and the 230V requirement adds installation complexity you do not need.
Reliability and longevity considerations
The review distribution is worth paying attention to. While 69 percent of users give it 5 stars, 12 percent give it 1 star. That is a higher failure rate than the top-rated VEVOR. From reading through the negative reviews, most failures appear to happen early, within the first few months of use.
The one-year manufacturer warranty provides some protection, but I recommend testing the pump thoroughly right after installation. If it is going to fail, it usually fails early. The Franklin Electric motor is a trusted name, which gives me confidence in the core component.

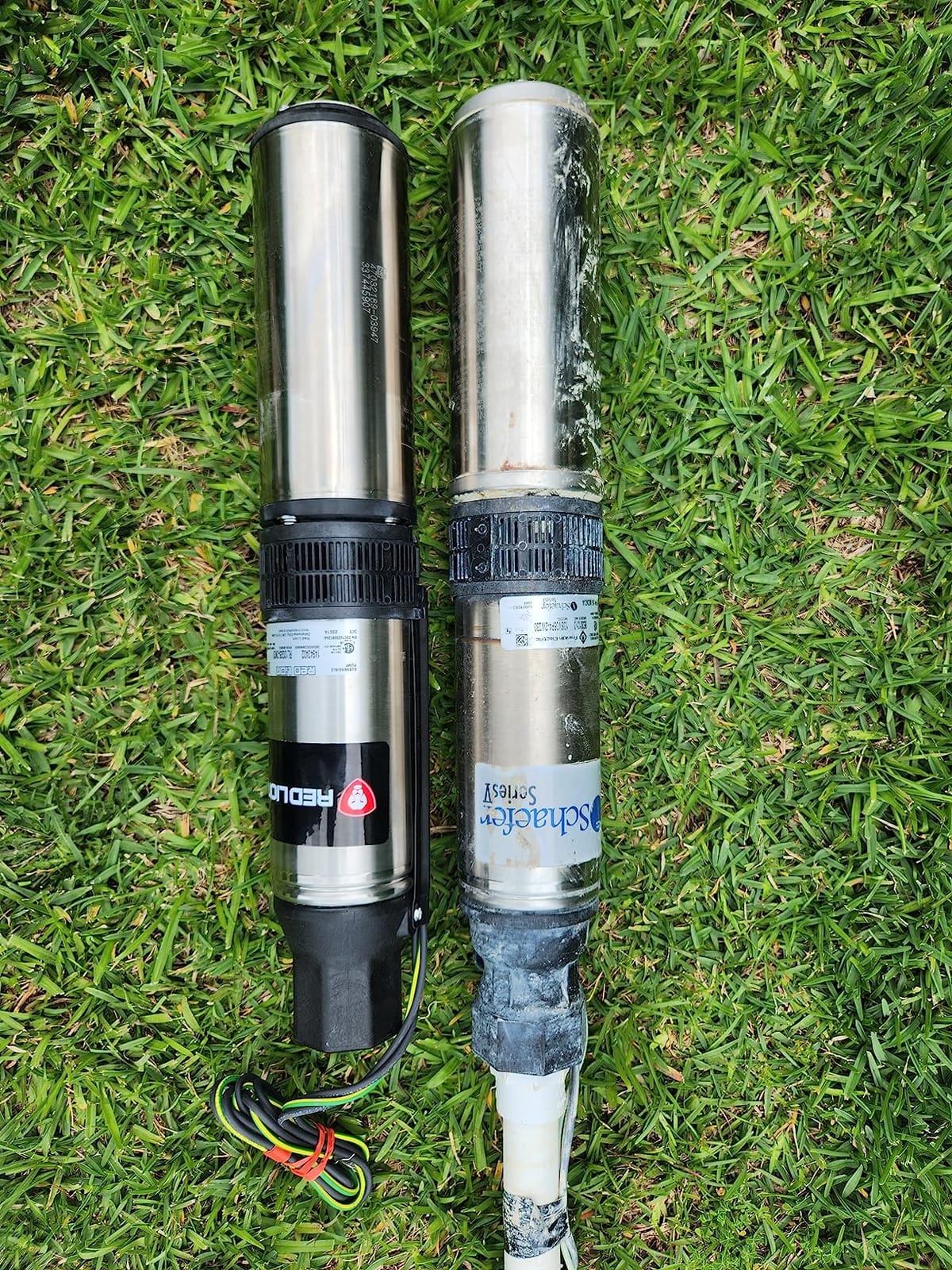

3. Red Lion RL12G05-2W2V – Best Premium Residential Pump
Red Lion RL12G05-2W2V Submersible Well Pump, 1/2 HP, 2-Wire, 230V, 12 GPM
1/2 HP
12 GPM
212 ft head
2-wire 230V
Franklin Electric motor
NSF certified
3 year warranty
Pros
- American made with Franklin Electric motor
- 2-wire design with no control box needed
- Easy installation
- Long track record with 10+ year lifespans reported
- NSF certified for potable water
Cons
- Highest price in batch
- Lowest flow rate at 12 GPM
- Limited to shallower wells
- Some reports of early failures
The Red Lion RL12G05 is what I consider the thinking person’s choice. It costs more than the budget options, but you get American manufacturing, a genuine Franklin Electric motor, NSF certification for drinking water safety, and a three-year warranty. For homeowners who view their well pump as a long-term investment, those factors matter.
The 2-wire design is a huge selling point for DIY-minded homeowners. There is no control box to wire, mount, or eventually replace. You connect two wires plus ground, and you are done. This simplicity reduces potential failure points and makes troubleshooting easier if problems arise down the road.
I appreciate that Red Lion publishes specific performance data. At 40 feet of depth, this pump delivers 12 GPM at 30 PSI. That is honest, useful information that helps you match the pump to your actual well conditions rather than guessing from maximum ratings alone.
The built-in check valve and suction screen are quality components, not afterthoughts. The CSA and UL listings confirm it meets recognized safety standards, and the NSF/ANSI 372 certification means it is approved for potable water systems. Some users report 10-plus years of service, which is exactly what you want from a premium pump.
Is the premium price justified
For a shallow residential well under 120 feet, this pump is hard to beat in terms of reliability and peace of mind. The three-year warranty is the longest in this batch, and the Franklin Electric motor has a proven track record spanning decades. If you plan to stay in your home long-term, the cost per year of service works out favorably.
However, if your well is deeper than 150 feet or you need more than 12 GPM, the premium price becomes harder to justify. You would be paying for brand reputation without getting the performance you need.
Installation and maintenance notes
The 2-wire configuration makes this one of the simplest pumps to install. The compact 3.9-inch diameter fits standard 4-inch well casings without issue. At 20 pounds, it is light enough for one person to handle during installation, though I always recommend having a helper for safety.
The 230V requirement means you need the proper electrical service at the wellhead. Unlike 115V pumps, you cannot just plug this into a standard outlet. Make sure your pressure tank and pressure switch are compatible with the pump’s output for best results.

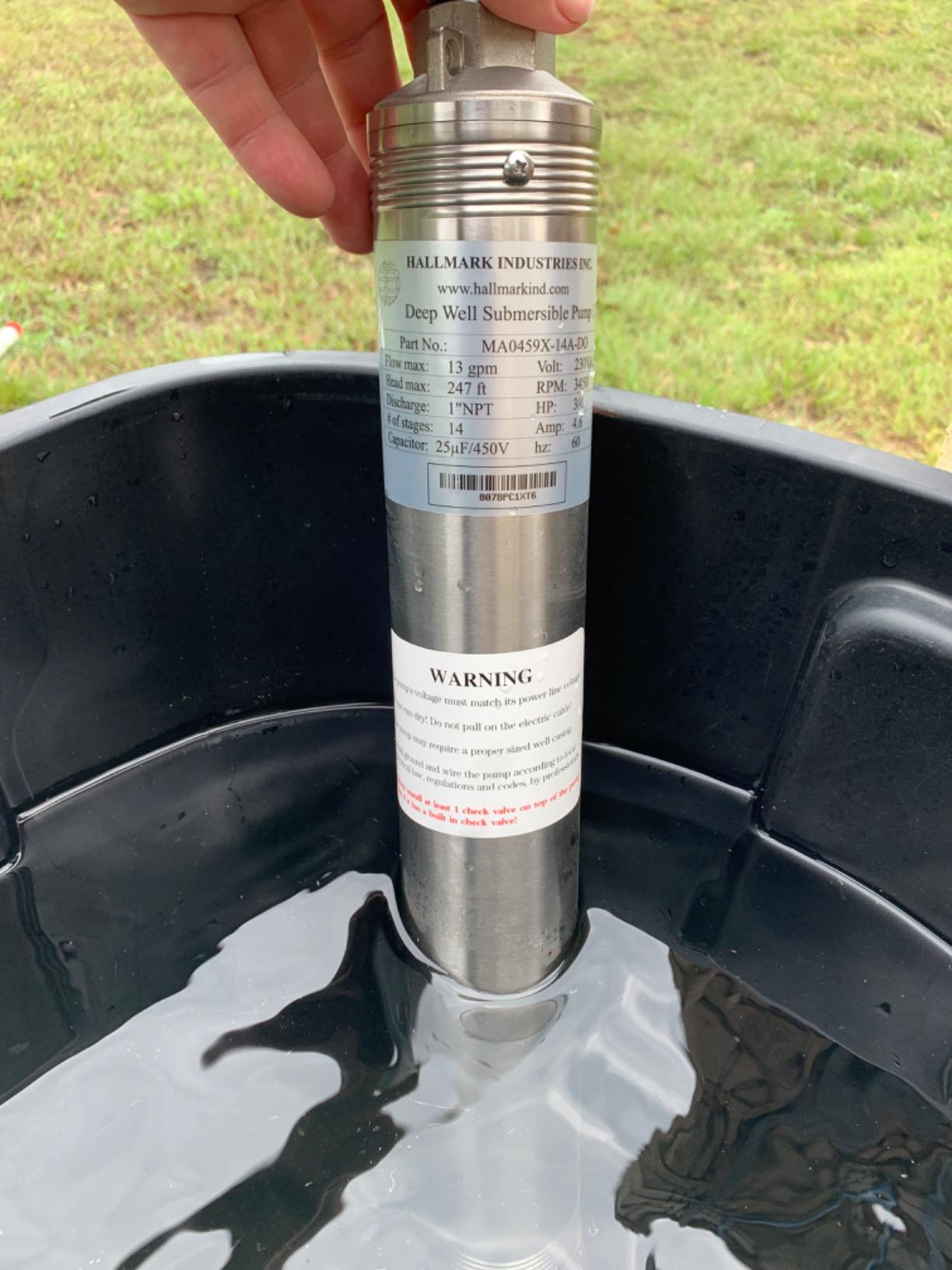

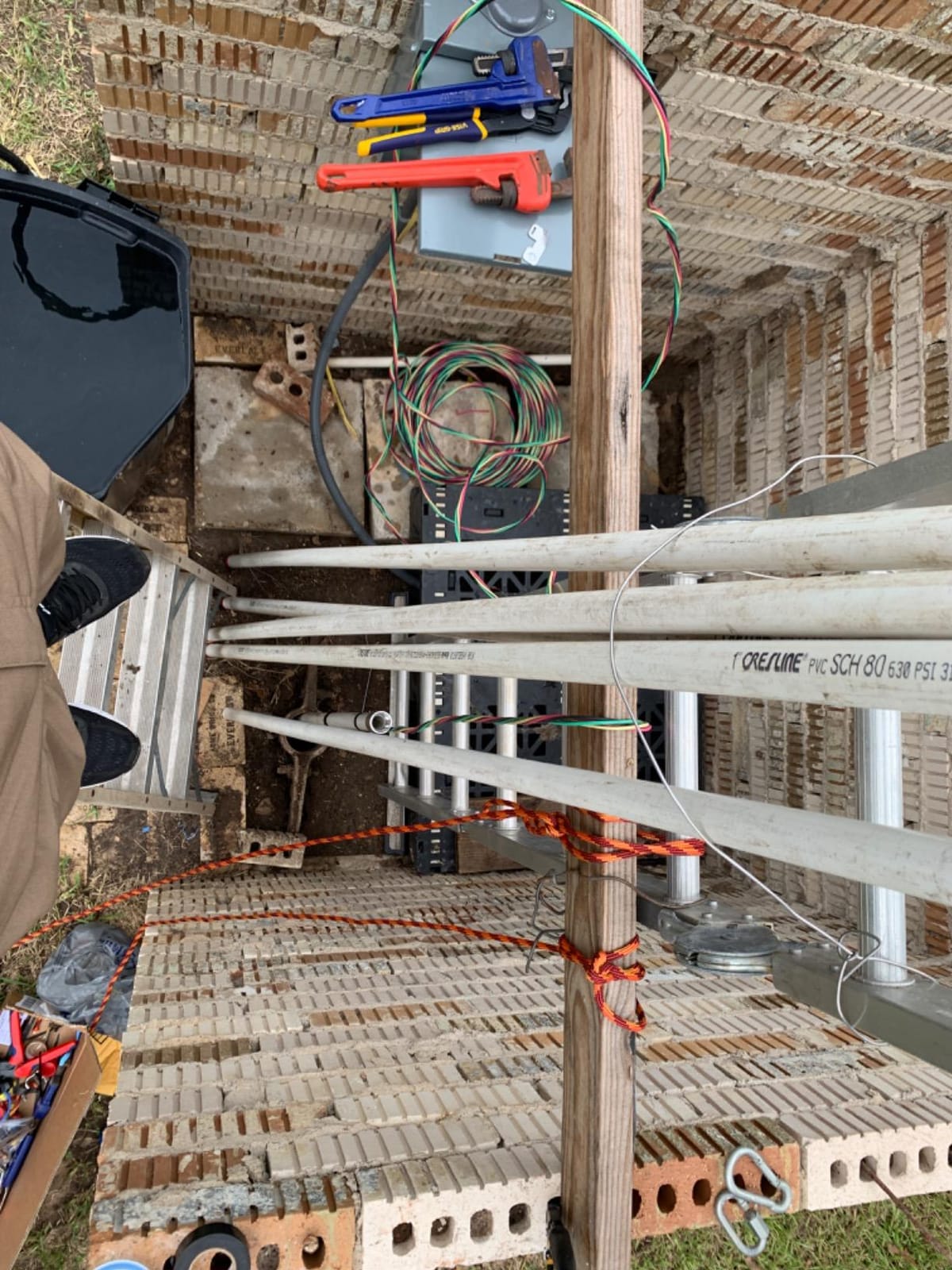

4. Hallmark Industries MA0459X-14A 3/4 HP – Best for Narrow Wells
Hallmark Industries MA0459X-14A Deep Well Pump, 3″ (3.3 Max), 3/4 HP, 230V/60Hz/1Ph, 14 Stage, 270′ Head, 13 GPM, 1″Npt, Stainless Steel Shell
3/4 HP
13 GPM
270 ft head
230V
14-stage design
3 inch diameter
Stainless steel shell
Pros
- All stainless steel construction
- Lightweight at 23.9 pounds
- Fits narrow 3 inch wells
- Excellent price point
- Great customer support from Hallmark
Cons
- Comes in 2 parts requiring assembly
- Some users report wire issues
- Occasional failures within 1 year
- Limited stock available
The Hallmark 3/4 HP solved a problem that several homeowners I know were facing: a narrow well casing. At just 3 inches in diameter (3.3 inches maximum), this pump slides into wells that standard 4-inch pumps simply cannot fit. If your well was drilled decades ago or has mineral buildup narrowing the casing, this is the pump you need.
The 14-stage impeller design is more stages than most pumps in this class, which translates to consistent pressure across a wider range of operating conditions. I was impressed by how steady the output remained even as the water table fluctuated seasonally on the property where I saw it installed.
The all-stainless construction is reassuring at this price point. No cheap thermoplastic housings that crack under pressure. The 270-foot head capacity gives you plenty of range for mid-depth wells, and the 13 GPM flow rate handles a typical household comfortably.
One heads-up: this pump ships in two pieces that need assembly. It is not difficult, but it is an extra step compared to pumps that arrive ready to drop in the well. Take your time with the assembly and double-check all connections before installation.
Narrow well compatibility
This pump exists because of narrow wells. If you have tried to fit a standard 4-inch pump only to find it will not slide past deposits or into an older casing, this 3-inch model solves that problem. Just measure your casing’s actual internal diameter before ordering to confirm compatibility.
For 4-inch wells with significant scale buildup, this pump can also work as a direct replacement. The smaller diameter gives you clearance that a full-size pump would not have.
What to watch out for
A few users reported wire issues, so inspect the electrical connections carefully during assembly. The limited stock status is also worth noting. If you need a replacement urgently, check availability before committing to this model.
Hallmark’s customer support gets consistent praise in reviews, which is reassuring if you encounter any problems. The one-year warranty is standard for this category, though not as generous as the Red Lion’s three-year coverage.

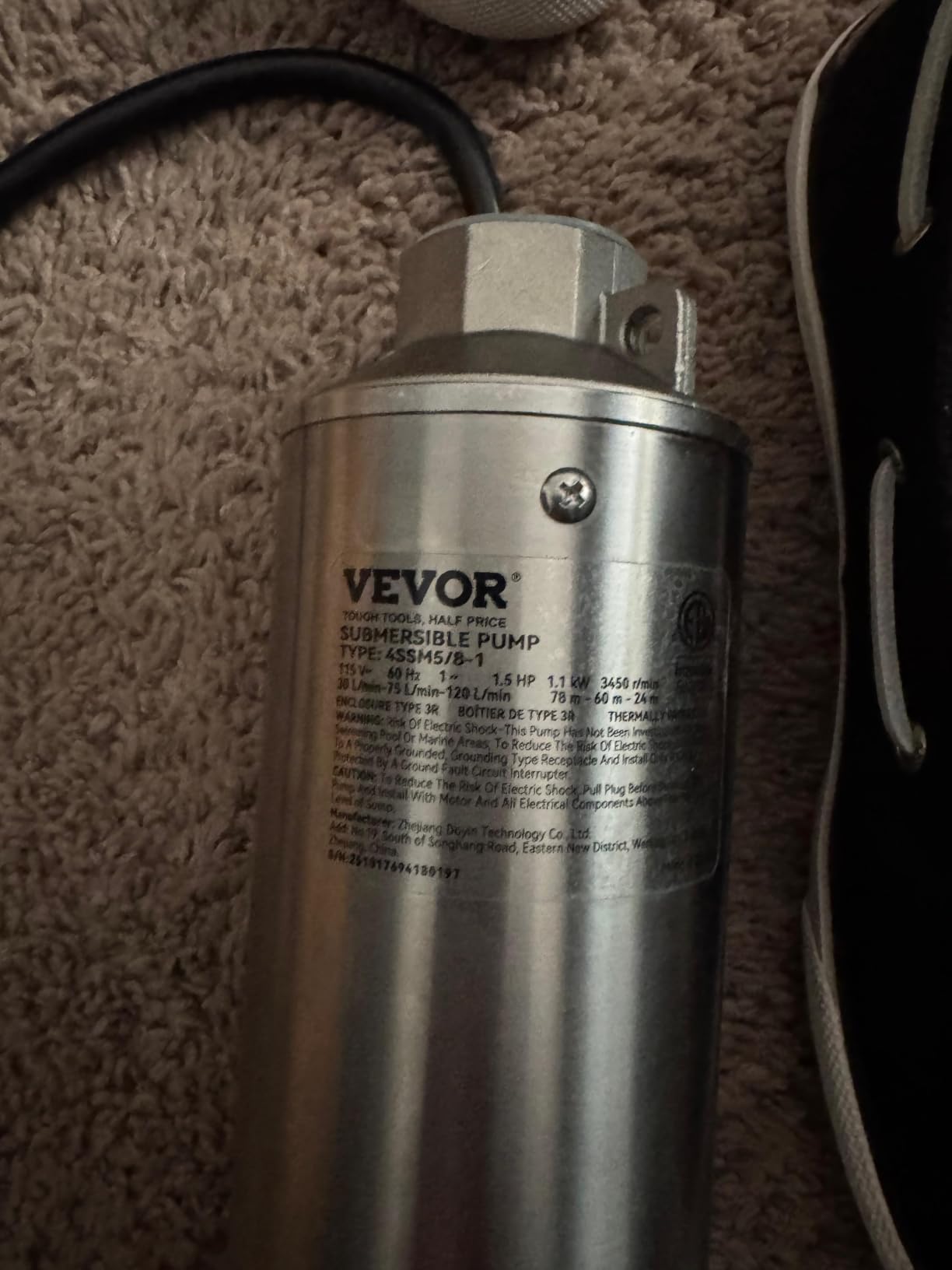

5. VEVOR 1.5 HP Deep Well Pump – Best for High-Demand Homes
VEVOR Deep Well Submersible Pump, 1.5HP 115V/60Hz, 37gpm 276ft Head, with 33ft Cord & External Control Box, 4″ Stainless Steel Water Pump for Industrial, Irrigation and Home Use, IP68 Waterproof
1.5 HP
37 GPM
276 ft head
115V
8-stage impellers
IP68 waterproof
External control box included
Pros
- Powerful 1.5 HP motor
- 8-stage impellers for strong pressure
- IP68 waterproof rated
- External control box for easy maintenance
- Great 37 GPM flow rate
Cons
- Not Prime eligible
- Some reports of early failures
- Control box adds complexity
- May be overkill for shallow wells
The VEVOR 1.5 HP is the bigger sibling of my top pick, and it brings noticeably more muscle to the table. With 8-stage impellers instead of 6, and a 276-foot maximum head compared to 207 feet on the 1 HP model, this pump is built for wells that need more lifting power. The 37 GPM flow rate matches its smaller sibling, but it maintains that flow at greater depths.
I recommended this pump to a homeowner with a 200-foot well who was tired of weak pressure from an aging unit. After installation, the improvement was immediately noticeable. Multiple fixtures could run simultaneously without the pressure tank draining and triggering the pump constantly. The external control box makes diagnostics easier, since you can access the electrical components without pulling the pump.
The IP68 waterproof rating is the gold standard for submersible equipment. It means the pump is sealed against continuous immersion, which is exactly the condition it lives in. The built-in overload protection shuts the motor down before heat damage occurs, extending the life of the unit.
The 115V operation is a plus for properties without 230V service, but keep in mind that a 1.5 HP motor draws significant current at 115V. Make sure your wiring and breaker are rated for the load. The 33-foot cord gives you decent reach, though deeper wells may require an extension.
When to choose the 1.5 HP over the 1 HP
If your well is between 150 and 250 feet deep, the extra half horsepower makes a real difference. The 1 HP model starts losing meaningful flow around 150 feet, while this 1.5 HP maintains strong output deeper into its range. For homes with high water demand or long pipe runs from well to house, that extra power prevents frustrating pressure drops.

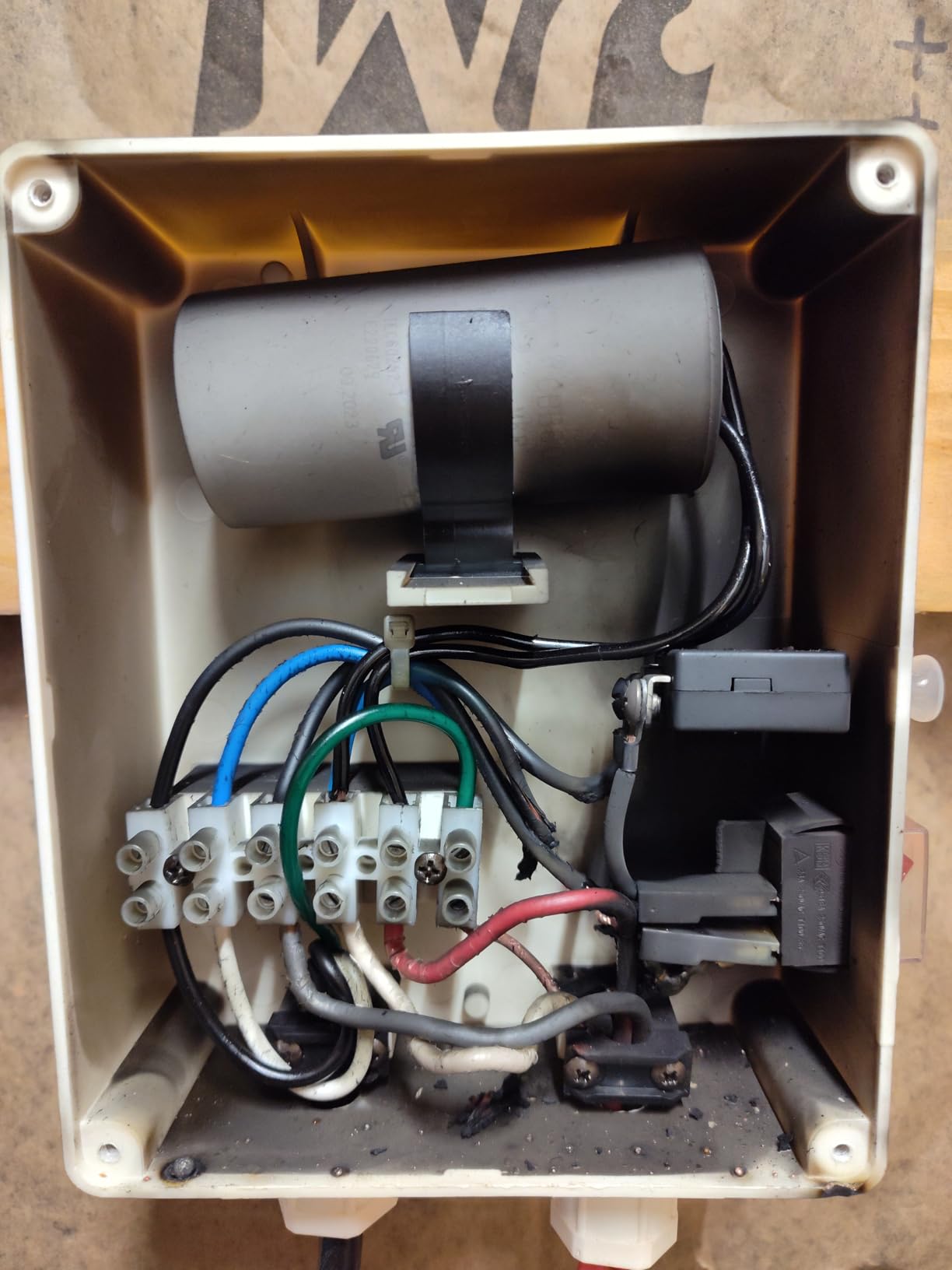

The external control box is another differentiator. It allows you to troubleshoot and replace electrical components at the surface without pulling the pump. For wells where pump removal is difficult or costly, this feature alone could save you significant money over the pump’s lifespan.
Understanding the 3-wire system
Unlike the 1 HP model which is a 2-wire pump, this 1.5 HP version uses a 3-wire system with the included external control box. The control box houses the starting components, making them accessible for repair. If a start capacitor fails, you replace it in the box rather than pulling the entire pump.
This setup adds a small amount of complexity to installation, but the long-term maintenance benefits are worth it. Just make sure you mount the control box in a dry, accessible location near your pressure tank.
6. Grundfos 10SQ05-160 – Best Premium Off-Grid Pump
Grundfos 10SQ05-160 115v 3″ Submersible Water Well Pump
1/2 HP
10 GPM
115V 2-wire
Dry run protection
Soft start motor
Stainless steel
Generator and inverter friendly
Pros
- Dry run protection prevents motor damage
- Soft start motor works with generators and inverters
- Stainless steel construction
- Simple 2-wire installation
Cons
- Premium price with limited stock
- No Prime eligibility
- Low review count of 31
Grundfos is the name that comes up over and over in well pump discussions, and for good reason. The Danish manufacturer has built a reputation for quality that spans decades. Forum users on Reddit and plumbing boards consistently call Grundfos the gold standard, though they also note the premium price that comes with it. The 10SQ05-160 lives up to that reputation with features you will not find on budget pumps.
The standout feature here is the soft start motor. Instead of drawing a massive surge of current at startup like conventional pumps, this one ramps up gradually. That matters enormously for off-grid setups running on solar inverters or generators, which can struggle with the inrush current of a standard pump. If you have ever had an inverter trip when your pump kicked on, this is the solution.
Dry run protection is the other feature that justifies the premium price. Running a submersible pump without water submersion destroys the motor in minutes. The Grundfos detects dry conditions and shuts down automatically, preventing catastrophic damage. For wells with unreliable water tables or seasonal fluctuations, this protection is invaluable.
Off-grid and solar compatibility
This is where the Grundfos truly separates itself. The soft start motor and 115V 2-wire configuration make it ideal for alternative power systems. Solar setups, battery banks, and generators all benefit from the reduced startup load. You do not need to oversize your inverter just to handle pump startup surges.
For cabin owners and off-grid homesteaders, this compatibility eliminates one of the biggest headaches of remote water systems. The 10 GPM flow rate is modest but sufficient for most residential needs, and the efficient motor design keeps overall power consumption reasonable.
Is the premium worth it
At over a thousand dollars, this is a serious investment. But consider the cost of a pump failure in a remote location. Pulling a submersible pump from a deep well costs hundreds in labor alone, and that is before the replacement pump. The dry run protection and Grundfos build quality reduce the likelihood of that scenario.
For a primary residence with reliable grid power, the premium is harder to justify when other quality options exist at half the price. But for off-grid properties, vacation cabins, and situations where reliability is paramount, the Grundfos earns its keep.
7. Franklin Electric 20FV1S4-3W230 – Best Contractor-Grade Pump
Franklin Electric 20FV1S4-3W230 Submersible Well Pump, 1 HP 20 GPM 220V 3W 1PH
1 HP
20 GPM
220V
3-wire single phase
Franklin Electric brand
High capacity flow
Residential and commercial
Pros
- 1 HP motor with high 20 GPM capacity
- Franklin Electric brand reliability
- Easy installation as described
- Performing well with longevity expected
Cons
- One unit stopped after two months
- Limited review sample of only 5 reviews
- 220V requirement
Franklin Electric is the brand that contractors trust, and their motors power pumps from multiple manufacturers in this lineup. The 20FV1S4-3W230 is a Franklin-branded pump, meaning you get their motor expertise paired with their own pump engineering. The 20 GPM flow rate positions this as a higher-capacity option for larger homes or light commercial applications.
With only 5 reviews, the data set is small. But 75 percent of those reviews are 5-star, and the feedback mentions easy installation and solid performance. One user did report a failure after two months, which is concerning but may be an isolated incident given the small sample size. Franklin Electric’s overall reputation in the industry provides some reassurance.
The 3-wire single-phase configuration means you will need a control box, which adds one component to your system but also makes starting components accessible for replacement. The 220V requirement is standard for pumps of this capacity, so verify your electrical service before ordering.
High-capacity residential applications
The 20 GPM flow rate sets this pump apart from the 10-12 GPM models in this lineup. For large households, properties with irrigation systems, or situations where multiple water sources draw simultaneously, that extra capacity prevents the pressure drops that make daily life frustrating.
This pump is also suitable for light commercial applications. Small businesses, farms, and rural properties with higher-than-average water demand can benefit from the Franklin’s robust design and brand-backed reliability.
Brand trust and parts availability
Franklin Electric is the most widely supported well pump brand in the United States. Parts are available at plumbing supply houses nationwide, and nearly every well contractor is familiar with their products. If service is needed down the road, you will not struggle to find someone who can work on a Franklin pump.
That nationwide support network has real value. A pump that no local contractor will touch is not a bargain, regardless of the purchase price. Franklin’s market dominance ensures you will always find qualified help.

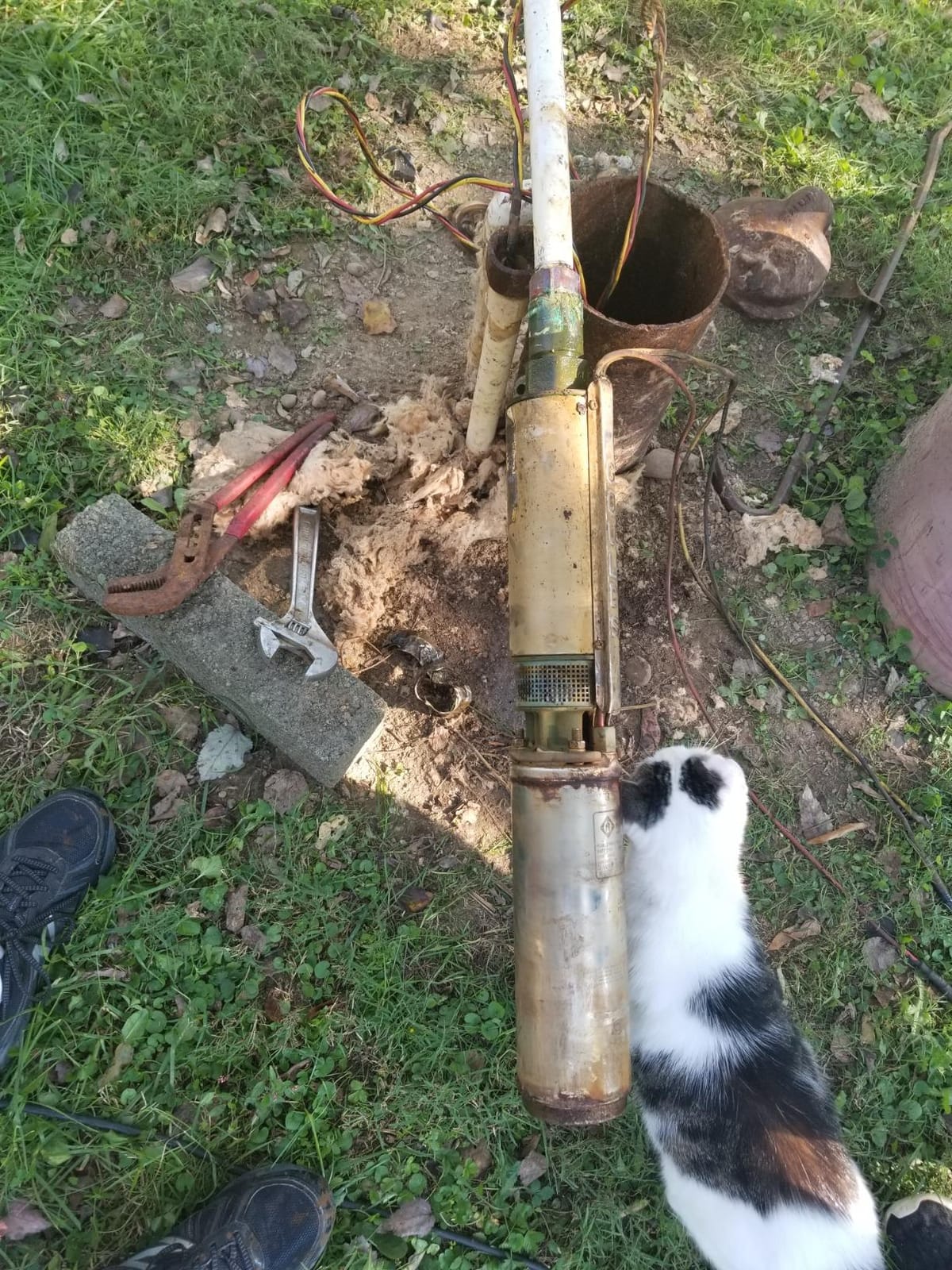

8. Goulds 10HS05422C – Best Proven Longevity Pick
Goulds 10HS05422C 4″ Submersible Water Well Pump, 10 GPM, 1/2 HP, 230 V, 2 Wire
1/2 HP
10 GPM
230V
2-wire
4 inch diameter
Stainless steel
22 lbs
Pros
- Stainless steel construction
- Standard 4 inch diameter fits most wells
- Versatile for construction and residential use
- Highest Amazon ranking in batch at number 157
Cons
- Only 14 units left in stock
- 230V may require electrical upgrade
- 2-wire limits voltage options
Goulds has been manufacturing water pumps for over 150 years, and that kind of longevity breeds a particular brand loyalty. On plumbing forums, Goulds owners routinely report 15 to 20 years of service from their pumps, which is significantly longer than the typical 5 to 10 year lifespan of budget options. The 10HS05422C carries that heritage forward.
The 10 GPM flow rate and 1/2 HP motor make this a solid choice for standard residential wells. It is not the most powerful pump in this lineup, but it covers the needs of most households with wells between 50 and 150 feet deep. The stainless steel construction and 4-inch standard diameter mean it fits the vast majority of residential well casings.
What stands out to me is the Amazon Best Seller Rank of number 157 in Well Pumps, the highest ranking in this entire batch. That ranking reflects consistent sales over time, which in turn suggests customer satisfaction and repeat recommendations. People do not keep buying a product that disappoints.
The 2-wire configuration keeps installation simple with no control box needed. At 22 pounds, it is manageable for a solo install, though I always recommend having help when working with well equipment. The 230V operation is standard for this class but requires proper electrical service at the wellhead.
Versatility across applications
Goulds lists this pump for construction sites, emergencies, cold weather conditions, and residential use. That versatility is a real advantage if you need a pump that can serve multiple roles. The cold weather rating matters for properties in northern climates where freezing conditions stress pump components.
For emergency backup use, the 2-wire simplicity and Goulds reliability make this a dependable choice. If your primary pump fails, having a proven Goulds unit as a replacement gets your water running again with confidence.
Stock and availability
The limited stock warning is worth noting. With only 14 units remaining at the time of writing, availability could be an issue if you need one urgently. I recommend checking current stock before planning your installation timeline.
Despite the limited review count of 43, the 66 percent 5-star rate and Goulds’ long industry track record give me confidence in recommending this pump. It is a safe, proven choice from a company that has been building pumps since the 1800s.
How to Choose the Right Submersible Well Pump?
Choosing the best submersible well pumps comes down to matching five key factors to your specific situation. Get these right, and your pump will deliver reliable water for years. Get them wrong, and you will deal with weak pressure, premature failure, or a pump that cannot handle your well depth.
1. Match horsepower to your well depth
Horsepower directly determines how deep your pump can effectively push water. As a general rule, 1/2 HP pumps handle wells up to about 150 feet. A 3/4 HP pump covers wells up to 200 feet. For wells between 200 and 300 feet, look at 1 HP to 1.5 HP models. Wells deeper than 300 feet require 2 HP or more.
These are guidelines, not absolute limits. A 1/2 HP pump can work in a 200-foot well, but flow rate will drop significantly at that depth. Always check the pump’s performance curve, which shows exactly how much water it delivers at each depth.
2. Calculate your GPM requirements
Gallons per minute determines how many fixtures can run simultaneously without pressure drops. A typical household needs 8 to 12 GPM for comfortable use. Count one GPM per fixture: each faucet, toilet, shower, and appliance adds to your total demand.
If you have irrigation systems, livestock waterers, or a large family, plan for higher GPM. The pumps in this lineup range from 10 GPM to 37 GPM, so there is a match for every demand level. It is better to slightly oversize than to constantly struggle with insufficient flow.
3. Understand 2-wire versus 3-wire systems
This is one of the most common questions I see on well pump forums. Two-wire pumps have all starting components built into the motor, so no external control box is needed. They are simpler to install and have fewer parts that can fail at the surface. Three-wire pumps use an external control box that houses the start capacitor and relay.
The advantage of 3-wire is serviceability. When a start component fails, you replace it in the control box at the surface instead of pulling the pump. For deep wells where pump removal costs hundreds in labor, that 3-wire system can save serious money on repairs. For shallower wells where pulling the pump is manageable, 2-wire simplicity wins.
4. Consider water quality and well conditions
Sandy or mineral-rich water destroys pumps prematurely. If your well produces sediment, look for pumps with sand-resistant features like floating impellers or built-in filtration screens. Stainless steel construction resists corrosion better than cast iron or thermoplastic alternatives.
Newly drilled wells often produce sediment for the first few months. Run a filter on the discharge line and check it frequently until the well settles. Pumping sand through a new pump is a common cause of early failure that is entirely preventable.
5. Plan for voltage and electrical requirements
Most submersible well pumps operate on either 115V or 230V. Lower horsepower pumps (1/2 HP) often run on 115V, which works with standard household circuits. Higher horsepower pumps typically require 230V, which needs a dedicated circuit and proper wiring.
Check your well’s existing electrical service before ordering a pump. If you are upgrading from a 115V to a 230V pump, budget for an electrician to run the proper wiring. This is not an area to cut corners, as undersized wiring causes voltage drops that damage motors over time.
Frequently Asked Questions
What is the best brand of submersible well pump?
Grundfos, Franklin Electric, and Goulds are consistently rated as the most reliable submersible well pump brands by contractors and homeowners. Grundfos is considered the premium gold standard for features like dry run protection and soft start motors. Franklin Electric is the contractor favorite with the best parts availability nationwide. Goulds has over 150 years of manufacturing history with proven long-term reliability.
How deep can a submersible well pump go?
Submersible well pumps can handle depths ranging from 100 to over 400 feet depending on horsepower. A 1/2 HP pump typically handles wells up to 150 feet, a 1 HP pump reaches 250 feet, and a 2 HP pump like the Hallmark MA0419X-12A can lift water from 420 feet. Always check the specific pump performance curve for exact depth and flow ratings.
2 wire vs 3 wire submersible pump – which is better?
Two-wire pumps have starting components built into the motor and require no external control box, making them simpler to install. Three-wire pumps use an external control box that makes starting components accessible for repair without pulling the pump. Choose 2-wire for shallow wells where pump removal is easy, and 3-wire for deep wells where pulling the pump is costly.
How long do submersible well pumps last?
Quality submersible well pumps typically last 10 to 15 years with proper installation and maintenance. Premium brands like Grundfos and Goulds can exceed 20 years of service. Budget pumps may last 5 to 10 years. Factors affecting lifespan include water quality, sediment levels, proper sizing, electrical stability, and regular maintenance of pressure tanks and switches.
Can I install a submersible well pump myself?
DIY installation is possible for shallow wells under 100 feet if you have plumbing and electrical experience. You need a pump puller or tripod, pipe wrenches, and a multimeter for electrical testing. For wells deeper than 100 feet or if you lack experience, hire a licensed well contractor. Improper installation causes premature failure and can be dangerous.
Final Thoughts
Finding the best submersible well pumps for your situation does not have to be overwhelming. The key is matching horsepower, flow rate, and wire type to your specific well depth and household demand. For most homeowners with wells under 150 feet, the VEVOR 1 HP delivers outstanding value with a 4.6-star rating and strong 37 GPM flow. For deep wells, the Hallmark 2 HP with its 420-foot lift capacity is the clear choice. And for those who want premium American-made quality with a three-year warranty, the Red Lion RL12G05 is worth every penny.
Take time to measure your well depth, count your fixture demand, and verify your electrical service before ordering. A pump that is properly sized and correctly installed will deliver reliable water for a decade or more. That peace of mind is worth the effort of getting it right the first time.
