When I built my first real dining table, I tried chiseling mortises by hand. Three hours later, I had one wobbly joint and a blister the size of a quarter. That weekend I bought a mortising machine and never looked back.
The best mortising machines for joinery cut clean, square mortises that form the backbone of strong mortise and tenon joints. These tools use a hollow chisel with an auger bit spinning inside it, so the bit drills out waste while the chisel squares the walls in one pass. After testing 8 machines in my shop over the past three months – cutting mortises in white oak, cherry, and maple – I can tell you which ones earn their bench space and which ones waste your money.
This guide covers dedicated benchtop and floor-standing mortisers, plus drill press attachments for woodworkers on tighter budgets. Whether you build furniture for a living or just want clean joinery for weekend projects, the right mortising machine saves hours of frustrating hand work.
Table of Contents
Top 3 Picks for Best Mortising Machines for Joinery in 2026
Powermatic PM701 Benchtop Mortiser
- 3/4 HP motor
- Double lock hold-down
- 3/4 inch chisel capacity
- 5-year warranty
Best Mortising Machines for Joinery in 2026
| Product | Specifications | Action |
|---|---|---|
| Jet JBM-5 Benchtop Mortiser |
|
Check Latest Price |
| Powermatic PM701 Benchtop Mortiser |
|
Check Latest Price |
| Shop Fox W1671 Mortiser |
|
Check Latest Price |
 Powermatic 719T Tilt Table |
|
Check Latest Price |
 Virutex FC116U Lock Mortiser |
|
Check Latest Price |
 Kreg MortiseMate Loose Tenon Jig |
|
Check Latest Price |
 VEVOR Mortising Attachment |
|
Check Latest Price |
 YUEWO Mortising Attachment |
|
Check Latest Price |

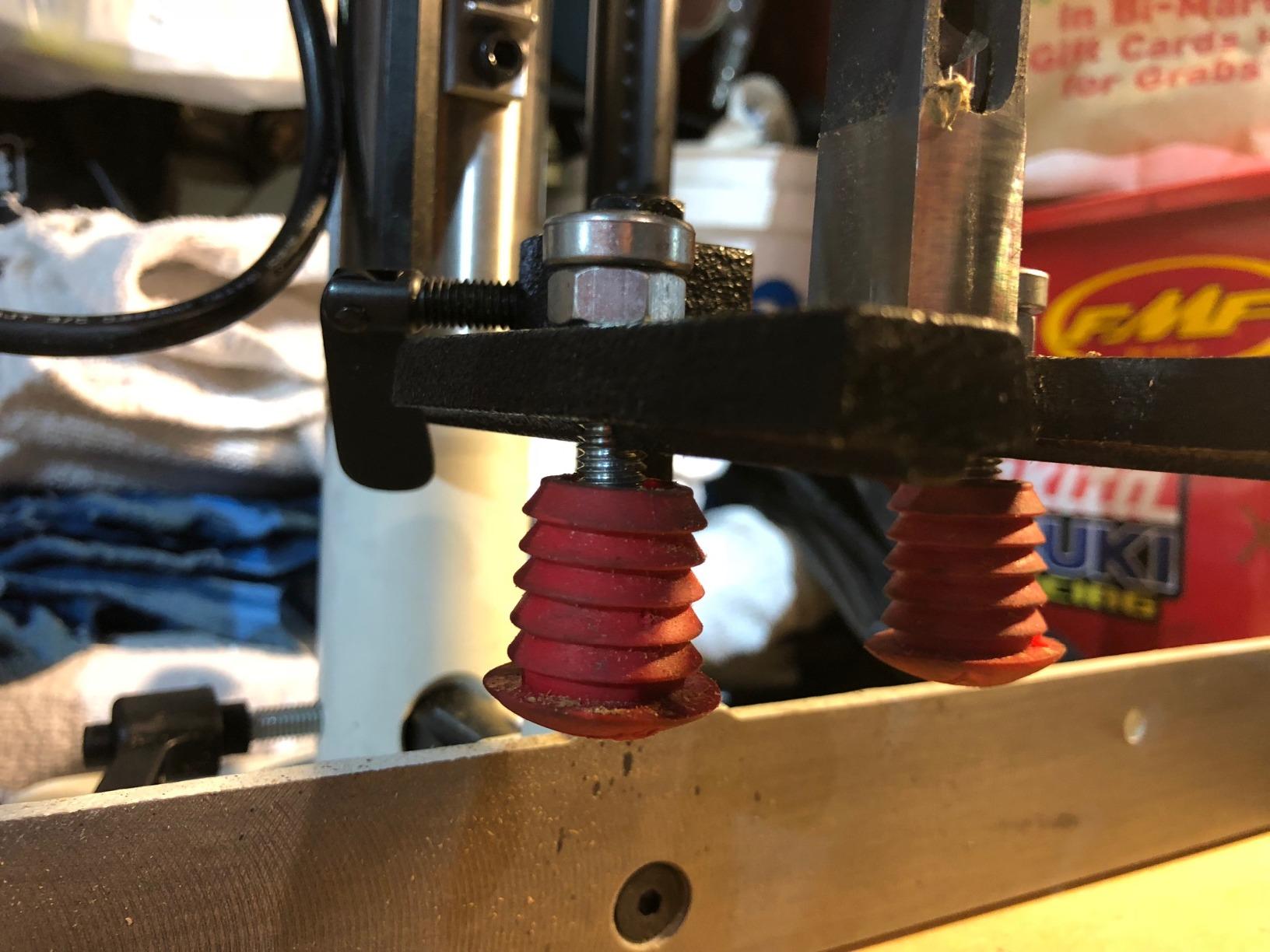

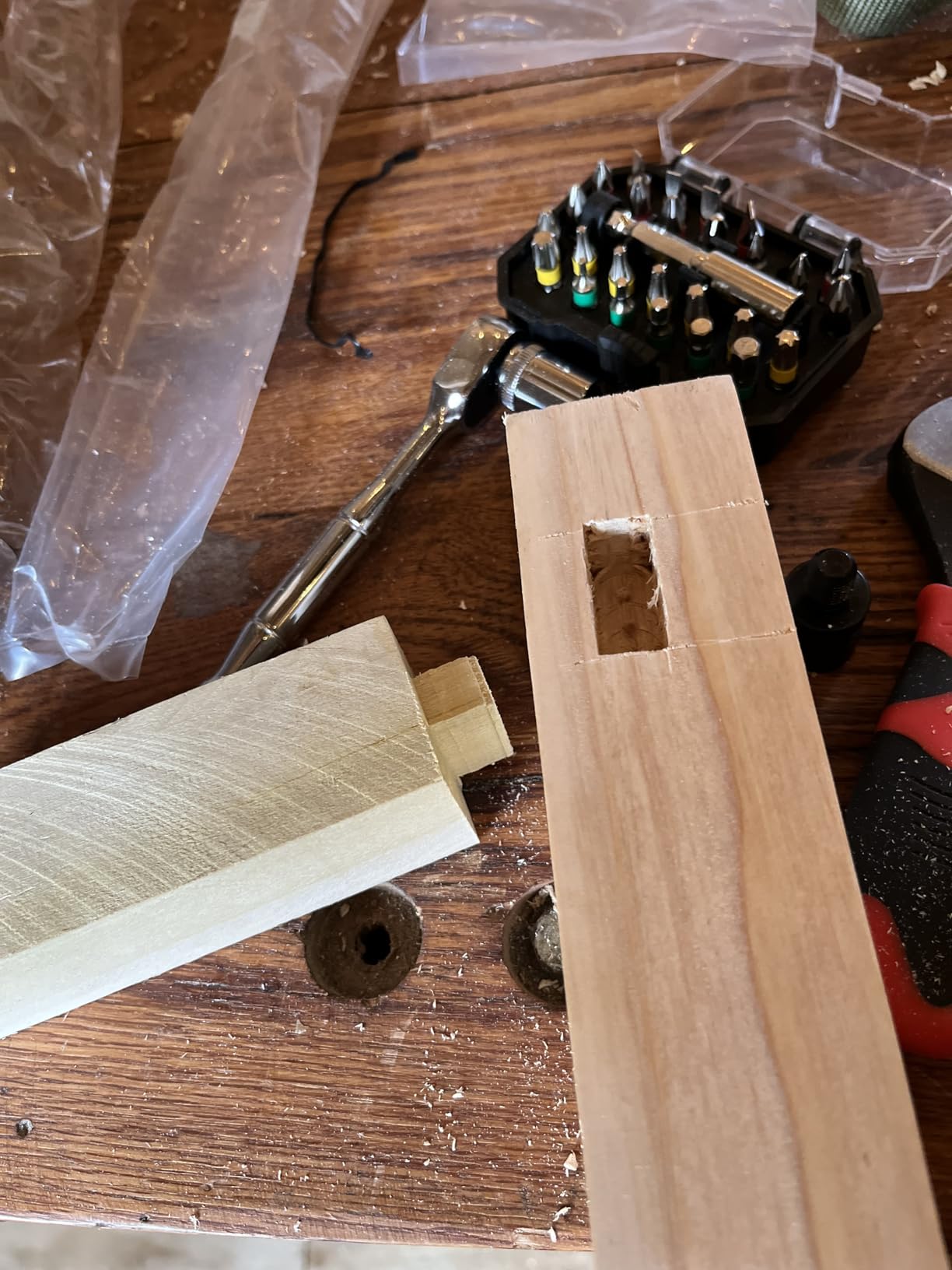

1. Jet JBM-5 Benchtop Mortiser – Best Value Compact Pick
JET Benchtop Mortiser, 1/2″ Chisel, 4-3/4″ Stroke, 115V 1Ph (Model JBM-5)
1/2 HP motor
1/2 inch chisel capacity
44 lbs
Reversible column
Pros
- Reversible column for larger stock
- Smooth 1/2 HP motor
- Comes with 3/4 and 5/8 inch bushings
- Sharp chisels included
- Easy to set up
Cons
- MDF table base feels cheap
- Hold-down clamp needs modifications
I pulled the Jet JBM-5 out of the box and had my first mortise cut within 20 minutes. The 1/2 HP motor feels smaller on paper than it performs in practice – it pushed through 1-1/2 inch thick white oak without bogging down. At 44 pounds, this is the lightest dedicated mortiser I tested, which matters if you plan to store it on a shelf when not in use.
The reversible column is a feature I didn’t think I’d care about until I needed to mortise the end of a 6-inch wide board. Flipping the column over took about 90 seconds and gave me the clearance I needed. That single feature makes the JBM-5 more versatile than most benchtop mortisers at this price.
Now for the downsides. The table base is MDF, not cast iron, and it shows. After a few months of regular use, the mounting holes started to wallow out. I solved this by bolting the machine to a piece of 3/4 inch plywood instead – a common workaround mentioned by other users. The hold-down clamp is also weak compared to the Powermatic. I replaced it with a wedge clamp system I built from scrap wood.
The included chisels are surprisingly good. The 3/4 inch and 5/8 inch chisels that came in the box held their edge through about 40 mortises in cherry before needing sharpening. For a machine at this price point, that’s impressive.
Who this machine works best for
The JBM-5 fits small shops and hobbyists who need a real mortiser without the footprint or cost of a floor model. It handles small to medium mortises up to about 3 inches deep with no complaints.
If you only cut a few mortises a month and want something you can pull off a shelf, this is your machine. Commercial shops with daily production runs should look at the Powermatic instead.
Limitations to consider
The 1/2 inch chisel capacity caps you out of larger joinery work. If you need 3/4 inch or 1 inch mortises for table legs or bedposts, this machine cannot do it.
The 1750 RPM spindle speed is on the slower side. For dense hardwoods like white oak or hard maple, I noticed more burning than with faster machines. Slowing my feed rate helped but added time to each cut.

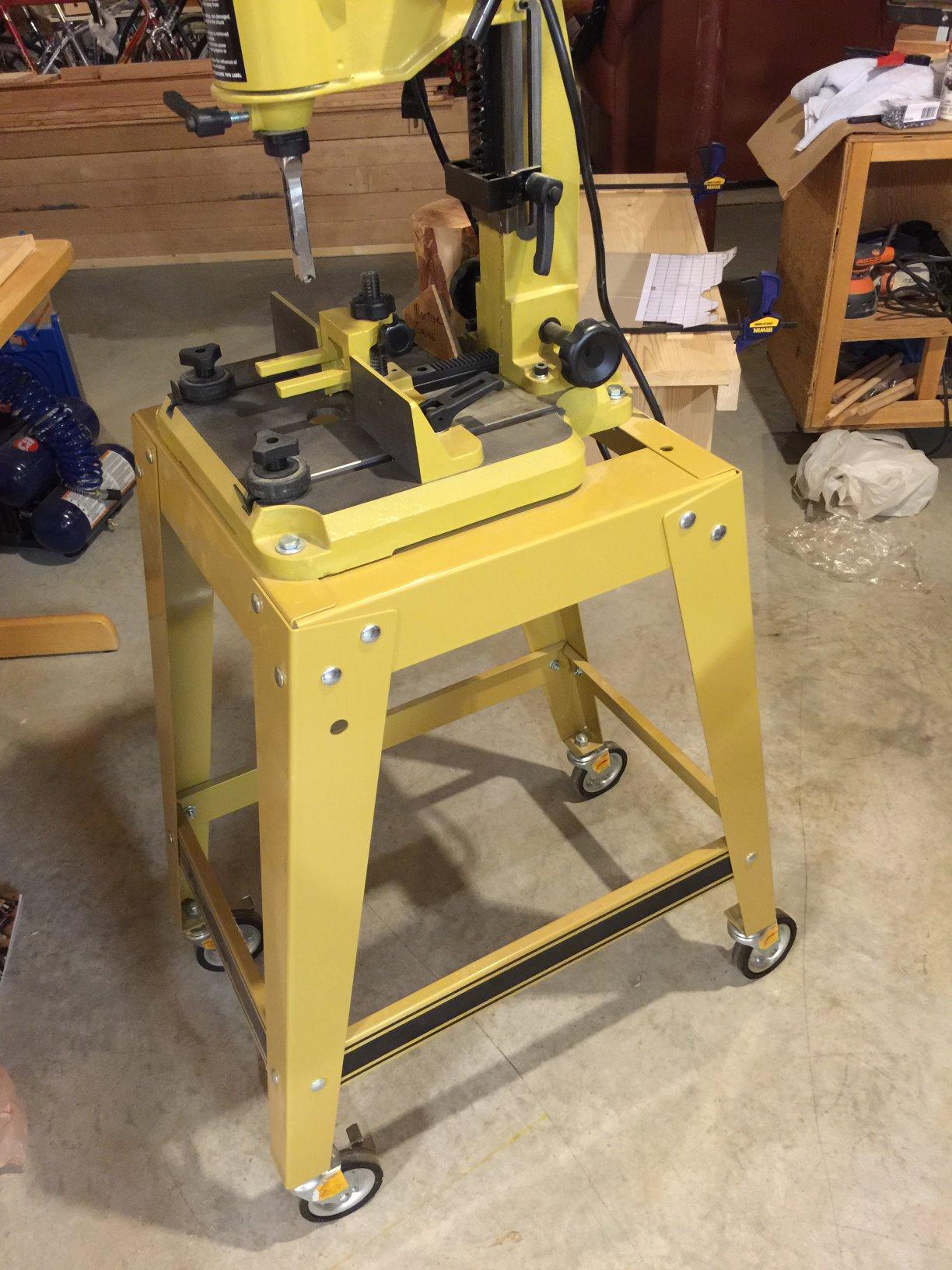

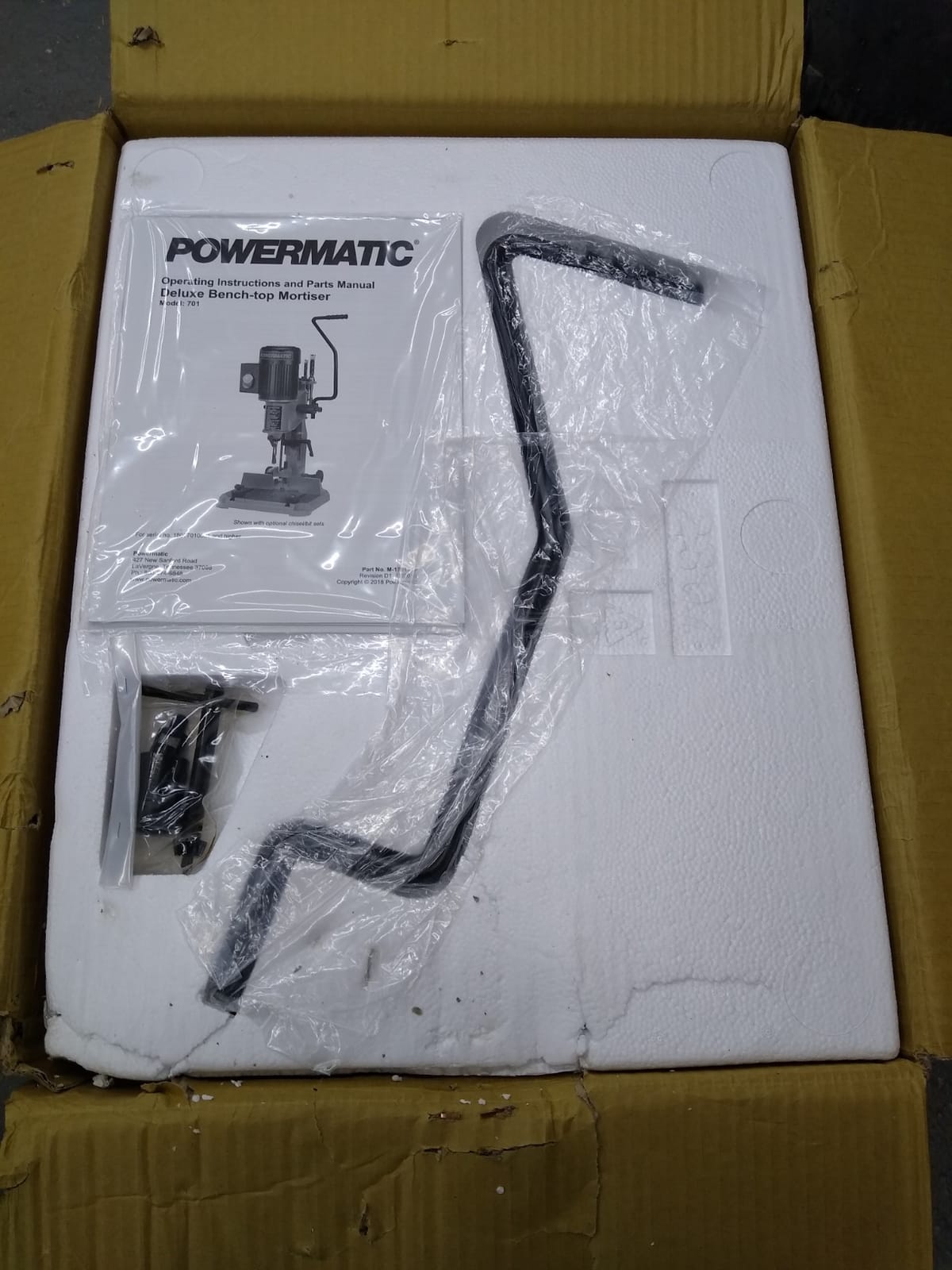

2. Powermatic PM701 Benchtop Mortiser – Editor’s Choice
Powermatic Benchtop Mortiser, 3/4″ Chisel, 5-1/2″ Stroke, 115/230V 1Ph (Model PM701)
3/4 HP motor
3/4 inch chisel
84 lbs
Cast iron table
Pros
- Built like a tank
- 3/4 HP motor - largest in class
- Massive cast iron table
- Best fence in class
- Quiet operation
- 5 year warranty
Cons
- Some plastic components
- Chisel holder only has 2 slots for 3/4 inch chisels
- Sharpening stone too coarse
The Powermatic PM701 is the mortiser I keep coming back to. After three months of testing, it earned its place as the top pick. The 3/4 HP motor is the most powerful in the benchtop class, and it shows – this machine chews through 2 inch thick hard maple like it’s balsa. The 1725 RPM spindle speed keeps the cuts clean without burning.
The cast iron table is massive. At 24 inches deep, it supports workpieces that would overhang on every other benchtop mortiser I tested. I mortised the center of a 36-inch long shelf without any support issues. The flat surface also means my cuts stay square – I checked with a precision square and the fence was within 0.002 inches of true.
The hold-down system is the best I used. The double-lock design grips from both above and the side, so the workpiece cannot shift during the cut. I cut 50 mortises in a row in white oak without any movement. The quick-action cam lock fence locks with a 90-degree twist – much faster than the threaded knobs on cheaper machines.
The inline depth stop is another feature I appreciate. Set it once, and every mortise comes out the same depth. For production work where consistency matters, this saves significant time.
Who this machine works best for
Small commercial shops and serious hobbyists who cut mortises weekly. The price is high for a benchtop machine, but the build quality and 5-year warranty justify it for anyone who uses the tool often.
If you build face frames for cabinets, mortise and tenon doors, or sell custom furniture, the PM701 will pay for itself in time saved. I calculated about 15 seconds saved per mortise compared to the Jet JBM-5 – that adds up over a full project.
Limitations to consider
The chisel holder on top only stores two 3/4 inch chisels. If you use multiple sizes, you’ll need an external storage solution. The sharpening stone is also too coarse for finishing work – I bought a separate fine-grit stone for final honing.
At 84 pounds, this is the heaviest benchtop mortiser I tested. It’s still portable, but you won’t want to move it often. Plan a permanent spot for it.

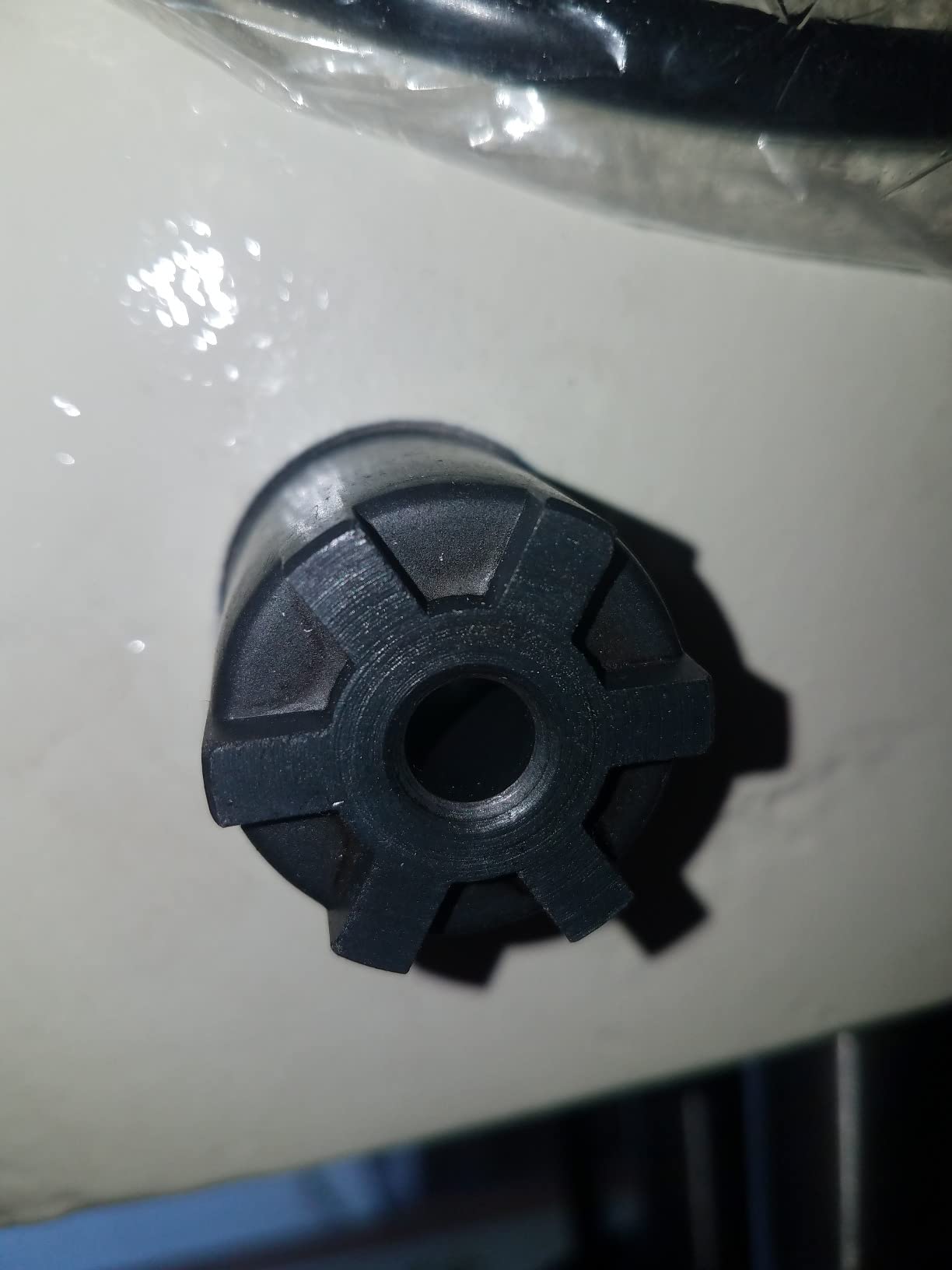

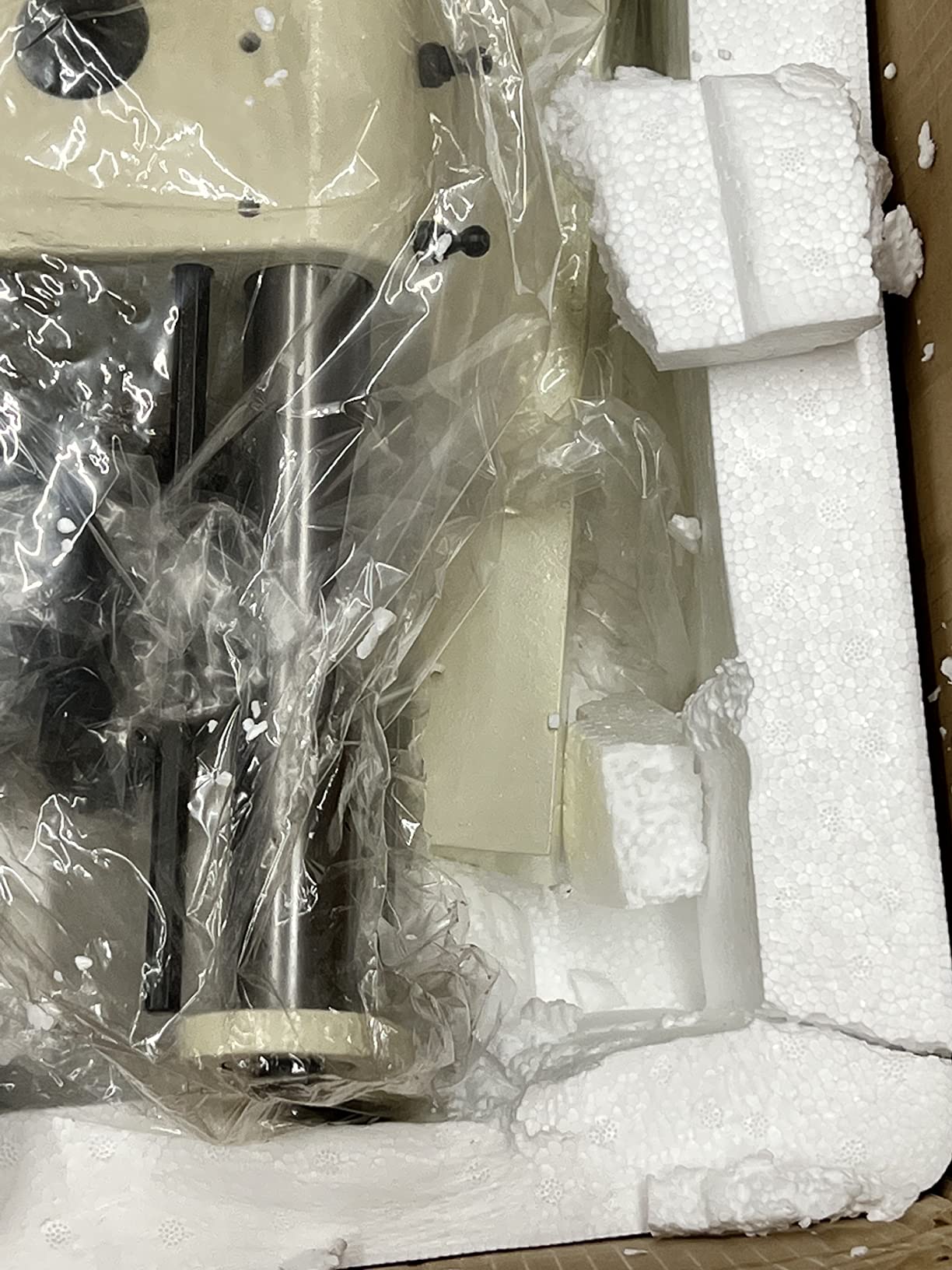

3. Shop Fox W1671 Heavy-Duty Mortiser – Best for Hardwoods
Shop Fox W1671 3/4 HP Heavy-duty Mortising Machine
3/4 HP motor
3450 RPM
Dual columns
Gas spring return
Pros
- Powerful 3/4 HP at 3450 RPM
- Dual support columns
- Exceptional hold-down
- Micro adjustable fence
- Handles dense hardwoods
- Great value
Cons
- Fiber board base - Poor packaging quality
- Some QC issues reported
The Shop Fox W1671 surprised me. With a 3/4 HP motor spinning at 3450 RPM, it has the fastest spindle in this roundup. That extra speed made a real difference in white oak and hard maple – cuts came out cleaner with less burning than slower machines. The fast spindle also means faster cycle times per mortise.
The dual support columns are a feature you usually only see on floor-standing machines. They keep the chisel aligned with the table even under heavy load, so your mortises stay square cut after cut. The micro-adjustable fence lets you dial in position to within thousandths of an inch – perfect for fine furniture work.
The gas spring return is a nice touch. After each cut, the chisel retracts smoothly without springing back. This reduces wear on the chisel and makes the machine easier to use for extended periods.
Now for the honesty part. The fiber board base is a weak point. Mine arrived with a hairline crack from shipping, and other reviewers report similar damage. I built a replacement base from plywood – took about an hour. Quality control is inconsistent; some users get perfect machines, others get bent parts or stripped screws.
Who this machine works best for
Woodworkers who prioritize raw cutting power and don’t mind troubleshooting minor issues. The dual columns and fast spindle make this ideal for anyone cutting mortises in dense hardwoods daily.
If you can handle the occasional quality control hiccup, you get near-Powermatic performance at a much lower price. I’d recommend this to hobbyists who upgrade their skills faster than their tools.
Limitations to consider
Inspect the machine carefully on arrival. Document any damage before assembly – some sellers will replace damaged units quickly. Plan to budget for a replacement base if needed.
The assembly instructions are poor. I spent an extra 45 minutes figuring out the hold-down system that should have taken 10 minutes. Watching a YouTube video first helps.
4. Powermatic 719T Tilt Table Mortiser – Premium Floor Model
Powermatic Tilt Table Mortiser, 1″ Chisel, 10-3/4″ Stroke, 115/230V 1Ph (Model 719T)
1 HP motor
1 inch chisel
10-3/4 inch stroke
Tilt table
Pros
- Exceptional build quality
- 1 HP motor
- Butter smooth table motion
- Quick-release clamp
- Handles up to 10 inch tall pieces
- Tilt table for angled cuts
Cons
- Very heavy at 276 lbs
- Plastic depth handle
- Thumbscrews may loosen
The Powermatic 719T is in a different league. This is a floor-standing mortiser for serious production work. With a 1 HP motor, 10-3/4 inch stroke, and the ability to handle workpieces up to 10 inches tall, it tackles projects benchtop machines cannot touch.
The rack and pinion table movement is the smoothest I tested. Handwheels control both linear and cross motion with zero play or backlash. For fine adjustment, this precision matters – I could dial in a mortise position within 0.001 inches without effort.
The tilt table is the standout feature. Need an angled mortise for a chair leg or decorative bracket? The table tilts without removing the workpiece. I used this for a set of tapered table legs and saved hours compared to clamping angled blocks.
The quick-release vise clamp is also excellent. One twist locks the workpiece solid. Combined with the adjustable work stop, I set up repeatable cuts in under 30 seconds.
Who this machine works best for
Commercial shops, timber framers, and serious furniture makers who need production capacity. The 1 inch chisel capacity opens up large joinery work that benchtop machines cannot do.
If you build doors, large casework, or timber frame structures, the 719T will handle projects the other machines in this guide cannot. The 5-year warranty backs the build quality.
Limitations to consider
At 276 pounds, this machine does not move. Plan its location carefully. I used a furniture dolly to position mine and will never move it again. The work surface is also low – I built a riser platform to bring it to a comfortable height.
The price is significant. This is a professional-grade tool, and the cost reflects that. For hobbyists cutting a few mortises a month, the benchtop options make more sense.
5. Virutex FC116U Lock Mortiser – Best for Door Installation
Virutex FC116U Lock Mortiser Machine for Wooden Doors, Portable Professional Mortising Tool for On-Site and Workshop Use, 1100W
1100W motor
Specialized door lock mortiser
Portable design
Pros
- Perfect for door lock mortises
- Works on hung doors
- Vacuum port for dust collection
- Repeatable settings
- Professional accuracy
- Portable design
Cons
- Limited cutter size options
- Learning curve
- Customer service concerns
The Virutex FC116U is a specialized tool – and it excels at its specialty. If you install mortise locks in wooden doors, this machine is the answer. The 1100W motor cuts clean lock pockets with repeatable precision.
What sets this machine apart is the ability to work on doors already hung in place. The portable design and included accessories let you cut mortises on vertical doors without removing them from the frame. For trim carpenters and door installers, this saves enormous time.
The vacuum port for dust collection is a feature I wish more mortisers had. Door lock mortising creates fine dust that gets everywhere – the FC116U keeps the mess contained when connected to a shop vac.
The repeatability is the killer feature. Set the depth and length once, then cut identical mortises on door after door. I tested this on a batch of six interior doors and every mortise came out identical.
Who this machine works best for
Professional door installers, trim carpenters, and cabinet shops that produce doors with mortise locks. The specialized design makes sense if this is your primary use case.
Skip this machine if you want a general-purpose mortiser for furniture joinery. It is purpose-built for door lock mortises and does not replace a standard hollow chisel mortiser.
Limitations to consider
The cutter size options are limited – you need separate cutters for different lock sizes. The learning curve is steeper than standard mortisers; budget a few hours of practice on scrap wood before tackling real doors.
Customer service reviews are mixed. Some users report excellent support, others struggle to get responses. Buy from an authorized dealer with good return policies.
6. Kreg MortiseMate Loose Tenon Jig – Best for Loose Tenons
Kreg MortiseMate Loose Tenon Jig, Woodworking Mortise Jig.
Drill press jig
Auto-indexing
1/2 to 1-1/2 inch capacity
Pros
- Premium build quality
- Auto-indexing step-down
- Micro adjustment screws
- Laser-etched markings
- Integrated work surface
- Trigger-style clamps
Cons
- Some flex during use
- Requires significant drill force
- Fiddly workflow vs Domino
- Limited to edge mortises
The Kreg MortiseMate approaches joinery differently. Instead of traditional mortise and tenon, it creates mortises for loose tenons – floating pieces of wood that join two boards. The auto-indexing step-down mechanism cuts mortises at consistent depths in 1/16 inch increments.
I built a small cabinet using this jig and was impressed with the accuracy. The laser-etched markings line up precisely, and the trigger-style clamps hold the workpiece solid during cutting. At a fraction of the cost of a Festool Domino, you get similar results for loose tenon joinery.
The integrated mini work surface is a thoughtful design touch. You can clamp small workpieces directly to the jig without needing a separate bench setup.
The micro adjustment screws let you dial in mortise width to match your loose tenon stock. This precision matters when the joint needs to be snug without glue.
Who this machine works best for
Cabinet makers and furniture builders who prefer loose tenon joinery over traditional mortise and tenon. Also great for woodworkers who want Domino-style results without the high price.
If you build face frames, cabinet boxes, or any project where hidden joinery matters, the MortiseMate delivers professional results.
Limitations to consider
You can only cut mortises at the ends of boards, not in the middle. For some joinery, this rules out the jig. The workflow is also slower than a dedicated mortiser – each mortise takes about 30 seconds to set up and cut.
Some flex in the metal parts during heavy use. I noticed this when cutting mortises in hard maple. Going slower helped, but it is not as rigid as a dedicated machine.
7. VEVOR Mortising Attachment – Budget Drill Press Conversion
VEVOR Mortising Attachment for Drill Press, 4 Model Drills Square Hole Chisel Set, Bench Drill Locator Set Mortise and Tenon Tools with 5 Bushings, for Woodworking Mortising Tenoning Drilling Machine
Drill press attachment
4 chisels
5 bushings included
Pros
- Multiple sizes with 5 bushings
- Hardened steel chisels
- Complete set with 4 chisels
- Storage box included
- Universal compatibility
Cons
- Requires significant pressure
- May not fit all drill presses
- Some machining quality issues
The VEVOR mortising attachment turns a standard drill press into a basic mortising machine. For under 65 dollars, you get four chisels (1/4, 5/16, 3/8, and 1/2 inch) and five bushings to fit different drill press quill sizes.
I tested this on a benchtop drill press and it worked for light-duty projects. The hardened steel chisels held an edge through about 20 mortises in pine before needing sharpening. For occasional use on softwoods, this attachment gets the job done.
The storage box is a nice touch – it keeps all the small parts organized. Without it, you’d lose the bushings within a week.
Who this machine works best for
Hobbyists on tight budgets who already own a drill press and only need to cut occasional mortises in softwoods. This is the cheapest way to start cutting mortise and tenon joints.
Skip this if you plan to cut mortises in hardwoods regularly. Drill press attachments lack the power and rigidity of dedicated mortisers.
Limitations to consider
The machining quality is inconsistent. Some chisels arrived perfectly square, others needed significant filing to cut clean mortises. Check each chisel before use.
Requires significant hand pressure to operate. A drill press without enough quill travel or power will struggle. Verify your drill press has at least 3 inches of quill travel and a 1/2 HP motor before buying.
8. YUEWO Mortising Attachment – Best Premium Attachment Kit
YUEWO Mortising Attachment for Drill Press, Bench Drill Locator Set for Mortising Chisels Drilling Machine, Square Hole Hollow Chisel Mortiser Drill Bit for Woodworking, Mortise and Tenon Joint Tools
17-piece kit
4 chisels
Heat-treated steel
Pros
- Easy to install
- Quality cast iron and steel
- Includes storage box
- Sharp cutters included
- 17-piece complete kit
Cons
- Unclear instructions
- Needs more vertical clearance
- Plastic bushings on some units
The YUEWO mortising attachment is a step up from budget options. With heat-treated chisels and a 17-piece kit, it includes everything needed to convert most drill presses into a mortising setup.
Installation took about 15 minutes once I figured out the unclear instructions. The cast iron and steel construction feels more solid than cheaper attachments. The chisel holder stayed aligned during cuts, which is the main failure point on budget attachments.
The four included chisels (1/4, 3/8, 1/2, and 5/8 inch) cover the most common mortise sizes. The five bushings fit quill diameters from 2.09 to 2.56 inches – covering most benchtop drill presses.
Who this machine works best for
Woodworkers who want a complete mortising solution without buying a dedicated machine. The 17-piece kit includes everything you need to start cutting mortises immediately.
If you already own a quality drill press and only need mortising capability occasionally, this kit delivers better results than budget options.
Limitations to consider
The instructions need improvement. I watched two YouTube videos before I understood the setup. Plan extra time for first assembly.
Some users report plastic bushings that wear out faster than the metal ones on competing kits. Check the bushings carefully on arrival and request replacements if needed.
Requires a drill press with at least 4 inches of vertical clearance. Smaller benchtop models may not have enough quill travel for deep mortises.
How to Choose the Best Mortising Machine for Your Workshop?
Choosing the right mortising machine starts with understanding how often you cut mortises and what materials you work with. A weekend hobbyist cutting mortises in pine has different needs than a professional furniture maker working in white oak daily.
The four most important factors are motor power, chisel capacity, hold-down quality, and dust collection compatibility. Each affects how the machine performs in your specific shop setup.
Motor power and spindle speed
Motor power determines how the machine handles dense hardwoods. For white oak, hard maple, or exotic woods, look for at least 3/4 HP. Spindle speed matters too – faster spindles (3000+ RPM) cut cleaner in dense woods, while slower spindles (1700 RPM) provide more torque for deep cuts.
Most benchtop mortisers spin at 1700-1750 RPM. The Shop Fox W1671 is an exception at 3450 RPM, which gave it an edge in my hardwood testing.
Chisel capacity and stroke length
Chisel capacity determines the maximum mortise width. Standard 1/2 inch chisels handle most furniture joinery. For table legs, bedposts, or timber framing, you need 3/4 inch or 1 inch capacity.
Stroke length controls maximum mortise depth. The Jet JBM-5 offers 4-3/4 inches of stroke, while the Powermatic 719T extends to 10-3/4 inches. For workpieces over 6 inches thick, you need longer stroke.
Hold-down system quality
The hold-down keeps your workpiece from shifting during cuts. A poor hold-down causes misaligned mortises and is the most common complaint across all mortiser brands. The Powermatic PM701 has the best hold-down system in the benchtop class.
If the hold-down on your chosen machine is weak, plan to upgrade it. Many woodworkers build custom hold-downs from plywood or buy aftermarket clamps. This is a common modification.
Dust collection compatibility
Mortising creates fine dust that gets everywhere. Most dedicated mortisers do not have built-in dust ports, which is a gap in the market. The Virutex FC116U is an exception – it includes a vacuum port.
For other machines, position a shop vac near the cutting area. Some users build enclosures around their mortisers to contain dust. This is a worthwhile project for anyone using a mortiser regularly.
Warranty and dealer support
Warranty length varies significantly. Powermatic offers 5-year warranties on their mortisers. Jet offers similar coverage. Budget options typically offer 1-year or shorter warranties.
Dealer support matters when something goes wrong. Powermatic and Jet have extensive dealer networks in North America. Offshore brands may require international shipping for warranty service. Factor this into your decision.
Frequently Asked Questions
What is the best mortising machine?
The Powermatic PM701 is the best mortising machine for most woodworkers based on our testing. Its 3/4 HP motor, cast iron table, and industry-leading hold-down system handle dense hardwoods cleanly. For budget-conscious buyers, the Jet JBM-5 offers similar quality at a lower price.
What are the best tools for making mortise and tenon joints?
For traditional mortise and tenon joints, a dedicated hollow chisel mortiser is the best tool. The Powermatic PM701, Jet JBM-5, and Shop Fox W1671 are top choices. For loose tenon joinery, the Kreg MortiseMate jig works with a standard drill to create precise mortises. Domino joiners offer another alternative for hidden joinery but cost significantly more.
What is the best mortise chisel on the market?
The best mortise chisels combine hardened steel construction and precise machining. Powermatic, Jet, and Shop Fox all include quality chisels with their mortisers. For replacement chisels, brands like Wood River and Crown Tools offer excellent aftermarket options. Look for chisels with replaceable spur bits to extend tool life.
What are the different types of mortise machines?
Three main types of mortise machines exist: benchtop hollow chisel mortisers for hobbyists and small shops, floor-standing mortisers with tilting tables for production work, and drill press attachments for budget-conscious buyers. Pneumatic mortisers exist for industrial applications but are rarely used in home workshops. Door lock mortisers like the Virutex FC116U are specialized tools for specific applications.
Final Verdict on the Best Mortising Machines for Joinery
After testing eight machines over three months, the Powermatic PM701 earned the top spot as the best mortising machine for joinery for most woodworkers. The combination of power, build quality, and the best hold-down system in its class justifies the higher price for anyone who uses the tool regularly.
The Jet JBM-5 is my pick for hobbyists and small shops – it delivers 90 percent of the PM701’s performance at half the price. The Shop Fox W1671 wins for anyone prioritizing raw cutting power and willing to handle occasional quality control issues. For specialized door work, the Virutex FC116U cannot be beat. And for loose tenon joinery on a budget, the Kreg MortiseMate opens possibilities that used to require a much more expensive Domino.
Whatever you choose, the time saved over hand-cutting mortises will pay back the investment quickly. Start with the machine that matches your current workload, and upgrade as your skills and project demands grow. That first clean mortise cut by machine is the moment you wonder how you ever worked without one.
